LED fixtures which support a fresnel lens attachment.
Depending on the fixture an LED fresnel will give you the benefits of colour adjustment, low power consumption and water resistance.
Traditional fresnel fixtures within the Arri daylight / tungsten range still score well on the attributes of light quality and cost.
Nanlux Evoke 2400B LED
Fresnel. The motorised Fresnel Lens FL-35E is a cutting-edge NL mount optic with remote control and a zoom range from 15° to 46°.
The FL-35E can be controlled either by the button on the lens itself or by wired controller. Also compatible with NANLINK APP or DMX console.
Head. Bi-Colour. A 2400W spot, with IP55 rating. Colour adjustment from 2700 to 6500K with green/magenta offset.
Battery Option. Instagrid battery inverter.
Power: 2400W, Colour: CCT 2700K to 6500K (G/M +/- 80), CRI: 96, Rating; IP55, Head weight: 28kg, Head dimension: 73 x 53 x 57cm , Mounting: 28mm Spigot
£285 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - FL35e Fresnel
Nanlux Evoke 900C LED
Fresnel. Fresnel attachment FL35YK complete with barn doors. Compatible with Evoke 900C/1200/1200B. Focusable from 11°-45°.
Head. Colour. 940W fixture with RGBLAC LED colour engine, CCT 1,800K to 20,000K, multiple RGBW/HSI/XY/Gel colour modes and an impressive output of 12,940 lux at 3m.
Battery Option. Instagrid battery inverter.
Power: 940W, Colour: CCT 1800-20,000k (G/M +/- 200), CRI: 96,TLCI; 96, Rating; IP55, Head weight: 7.75kg, Kit weight: tbc, Head dimension: 33 x 24 x 21cm , Mounting: 28mm Spigot
£210 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - FL35YK Fresnel
Nanlux Evoke 1200B LED
Fresnel. Fresnel attachment FL35YK complete with barn doors. Compatible with Evoke 900C/1200/1200B. Focusable from 11°-45°.
Head. Bi-Colour. The Evoke 1200B adopts 2 x 1200W LED chips in dot matrix. IP54 rating makes the lamphead and PSU dust and water resistant.
Battery Option. Instagrid battery inverter.
Spot Power: 1200W, Colour: 2700-6500K, CRI: 96, Head weight: 7.75kg, Kit weight: tbc, Head dimension: 33 x 24 x 21cm , Mounting: 28mm Spigot
£185 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - FL35YK Fresnel
Nanlite Forza 150B LED
Fresnel. Fresnel attachment FL-11. Rotating barrel design makes beam angle adjustment from 10-35º.
Head. Bi-Colour. Compact and lightweight fixture weighing 1.4 kg, the 150B has a dedicated range of light modifiers and control options including DMX and RDM. Mains power or V-lock. A CRI of 96 and a TLCI of 98.
Battery Option. V-Lock.
Spot Power: 170W, Colour: 2700-6500K, CRI/TLCI: 96/98, Head weight: 1.36kg, Kit weight: tbc, Head dimension: 27 x 13 x 11cm, Mounting: 3/8 Spigot.
£40 Per day + VAT - Head (Base Kit)
£10 Per day + VAT - FL35YK Fresnel

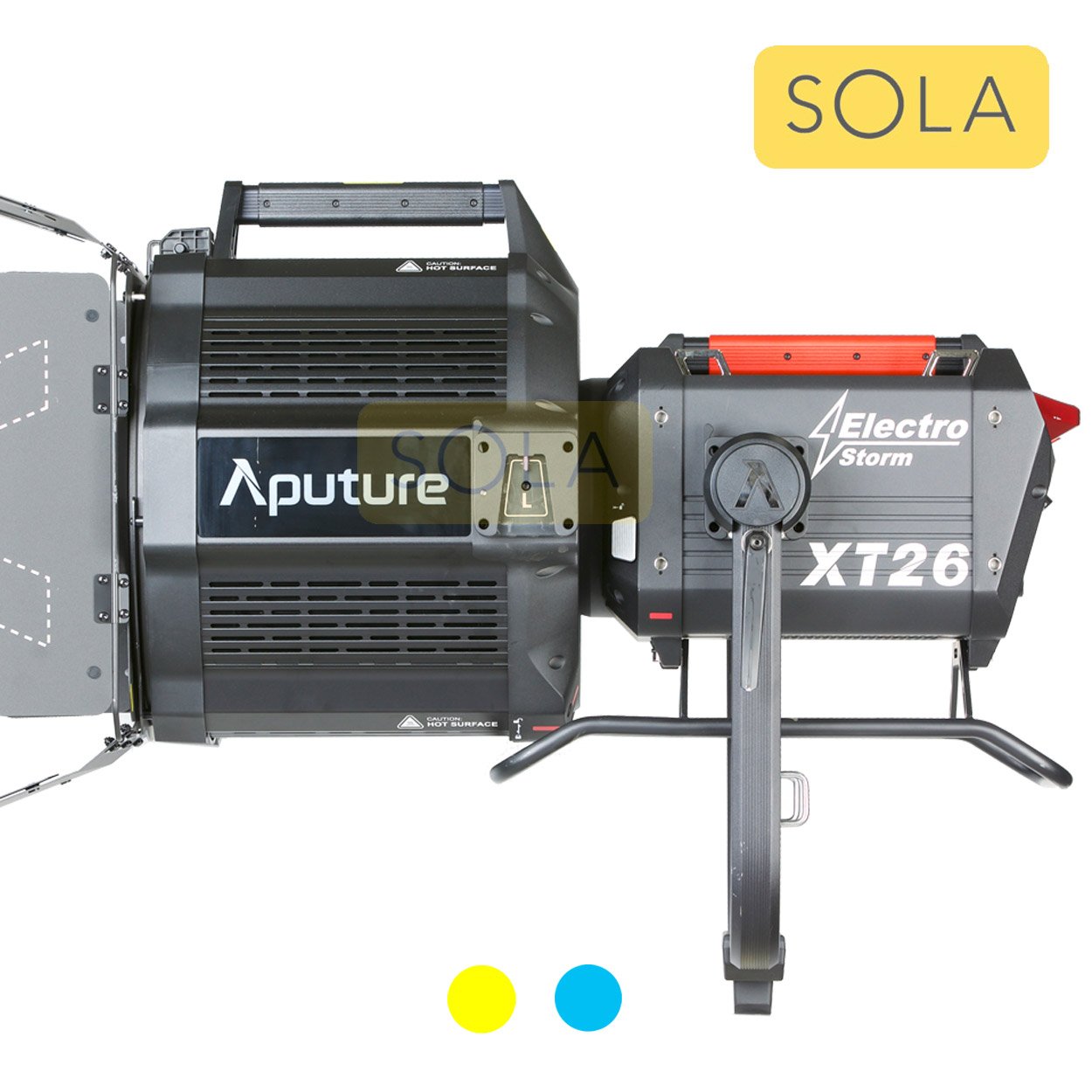

Aputure XT26
Fresnel. Motorised 14-Inch Fresnel with 18° to 50° beam angle. IP65 weather-resistant. Includes F14 barn doors & detachable yoke. Wifi/Bluetooth/Sidus and local control.
Head. A 2600W chipset with CCT range from 2700-6500K with green/magenta offset and a IP65 rating.
Battery Option. Instagrid battery inverter.
Power: 2600W, Power Draw: TBC, Colour; Full Spectrum, 2700-6500K with green/magenta offset, head weight w/o yoke 18kg, Head dimension w/o yoke: 45.7 x 35.2 x 28.1cm, Mounting: 28mm Spigot, Weather protection; IP65.
£295 Per day + VAT - Head (Base Kit)
£70 Per day + VAT - F14 Fresnel

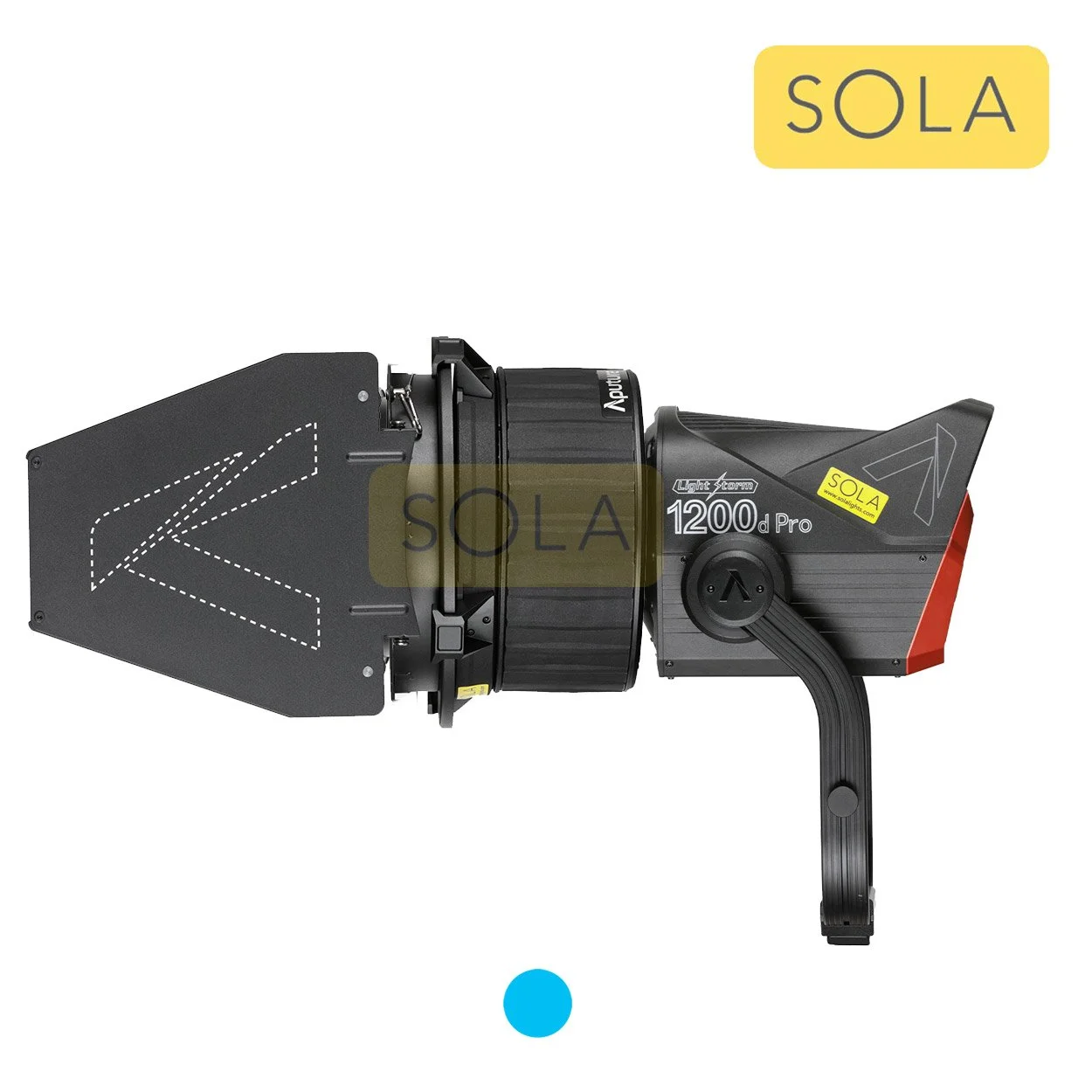

Aputure 1200d Pro LED
Fresnel. F10 Fresnel. 10”/250MM fresnel with a 15 to 45º beam angle. Twist lens to focus.
Head. Daylight. A 1200W COB chipset gives more output than a 1200W HMI. Light-storm weather proofing makes the unit dust and weather resistant.
Battery Option. Instagrid battery inverter.
Power: 1200W, Power draw: 1440W, Colour: 5600K, CRI: 96, Head weight: 7.57kg, Kit weight: 28kg, Head dimension w/yoke: 33 x 33 x 54cm , Mounting: 28mm Spigot. Control; Sidus Link App, 16-bit DMX512, Art- net & sACN via etherCON, LumenRadio CRMX, Light-storm weather proofing IP54.
£165 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - F10 Fresnel w/Barndoors
Aputure 600d Pro LED
Fresnel. F10 Fresnel. 10”/250MM fresnel with a 15 to 45º beam angle. Twist lens to focus.
Head. Daylight. The punchy 600d is a popular option within the Aputure range. Light-storm weather proofing makes the unit dust and weather resistant.
Battery Option. Half power with V-Lock or full power with 26V/28.8V/48V. For best run time and full power operation use our Instagrid battery inverters.
Power: 600W, Power draw: 720W, Colour: 2300-10,000K, CRI: 95, Head weight: 4.64kg, Kit weight: 18.2kg, Head dimension: 31 x 25 x 46cm, Mounting: 16mm Spigot. Control; Sidus Link App, 16-bit DMX512, Art- net & sACN via etherCON, LumenRadio CRMX, Light-storm weather proofing IP54.
£85 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - F10 Fresnel w/Barndoors
Aputure LS600c Pro LED
Fresnel. F10 Fresnel. 10”/250MM fresnel with a 15 to 45º beam angle. Twist lens to focus.
Head. Colour. RGBWW full colour light source with Light-storm weather proofing makes the unit dust and weather resistant.
Battery Option. Half power with V-Lock or full power with 26V/28.8V/48V. For best run time and full power operation use our Instagrid battery inverters.
Power: 600W, Power draw: 720W, Colour: 2300-10,000K, CRI: 95, Head weight: 5.86kg, Kit weight: 14.36kg, Head dimension: 45 x 27 x 15cm, Mounting: 16/28mm Spigot. Control; Sidus Link App, 16-bit DMX512, Art- net & sACN via etherCON, LumenRadio CRMX, Light-storm weather proofing IP54.
£120 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - F10 Fresnel w/Barndoors
Aputure LS600X Pro LED
Fresnel. F10 Fresnel. 10”/250MM fresnel with a 15 to 45º beam angle. Twist lens to focus.
Head. Bi-Colour. Weather resistant fixture with a colour range of 2700-6500K.
Battery Option. Half power with V-Lock or full power with 26V/28.8V/48V. For best run time and full power operation use our Instagrid battery inverters.
Power: 600W, Power draw: 720W, Colour: 2700-6500K, CRI: 96, Head weight: 5.86kg, Kit weight: 19.07kg, Head dimension: 30 x 43 x 24cm, Mounting: 16/28mm Spigot. Control; Sidus Link App, 16-bit DMX512, Art- net & sACN via etherCON, LumenRadio CRMX, Light-storm weather proofing IP54.
£90 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - F10 Fresnel w/Barndoors
Aputure LS C300d II LED
Fresnel. The compact 2x Fresnel has a rotating barrel design, similar to a camera lens. The larger F10 Fresnel (10” lens) will also work with the 300d.
Head. Daylight. Twenty percent brighter than its predecessor the daylight compact 300d mkII can produce 90,000lux, getting toward the output of a 575W HMI. Light-storm weather proofing.
Battery Option. V-Lock or Intstagrid Battery Inverter.
Power: 300W, Power draw: 350W, Colour: 5600K, CRI: 96, Head weight: 7.3kg, Kit weight: tbc kg, Head dimension: 29 x 22 x 35cm, Mounting: 16mm. Control; Sidus Link App, 16-bit DMX512, Art- net & sACN via etherCON, LumenRadio CRMX.
£65 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - 2x Fresnel w/Barndoors
Aputure LS300X LED
Fresnel. The compact 2x Fresnel has a rotating barrel design, similar to a camera lens. The larger F10 Fresnel (10” lens) will also work with the 300x.
Head. Bi-Colour. Original flagship lamp from Aputure with bi-colour adjustment from 2700-6500K and light-storm weather proofing.
Battery Option. V-Lock or Intstagrid Battery Inverter.
Power: 300W, Power draw: 350W, Colour: 2700-6500K, CRI/TLCI; 96, Head weight: 7.3kg, Kit weight: tbc kg, Head dimension: 29 x 22 x 35cm, Mounting: 16mm. Control; 2.4GHz Remote, Bluetooth Sidus Link, 5-pin DMX512.
£65 Per day + VAT - Head (Base Kit)
£40 Per day + VAT - 2x Fresnel w/Barndoors
Aputure LS60X LED
Fresnel. Fresnel fixture.
Head. Bi-Colour. Weather resistant LS 60x punches above its weight class as a 60W Bi-Colour focusing LED fixture with output of a 300W tungsten Fresnel.
Battery Option. V-Lock or dual NPF.
Power: 60W, Power draw: 90W, Colour: RGBWW, 2000-6500K, CRI: 96, Head weight: 1.8kg, Kit weight: 4.4kg, Head dimension w/yoke: 28 x 15 x 13cm, Mounting:16mm. Control; Sidus app control.
£40 Per day + VAT
Aputure LS60D LED
Fresnel. Fresnel fixture.
Head. Bi-Colour. Weather resistant LS 60d LED fixture that equals the output of a 650W tungsten Fresnel. Battery option V-Lock or dual NPF.
Battery Option. V-Lock or dual NPF.
Power: 60W, Power draw: 90W, Colour: 5600K, CRI: 96, Head weight: 1.8kg, Kit weight: 4.4kg, Head dimension w/yoke: 28 x 15 x 13cm, Mounting:16mm. Control; Sidus app control.
£40 Per day + VAT
