Compact Bi-Colour
60W Bi-Colour focusing LED fixture that gives output of a 300W tungsten Fresnel.
See compatible light shaping tools below.
Aputure LS 60x Base Kit. £40 Per day + VAT
Head Aputure LS 60x
Included in Base Kit
Power Supply 240V & IEC
Included in Base Kit
NPF Battery Adapter/D-Tap Cable 4-Pin
Included in Base Kit

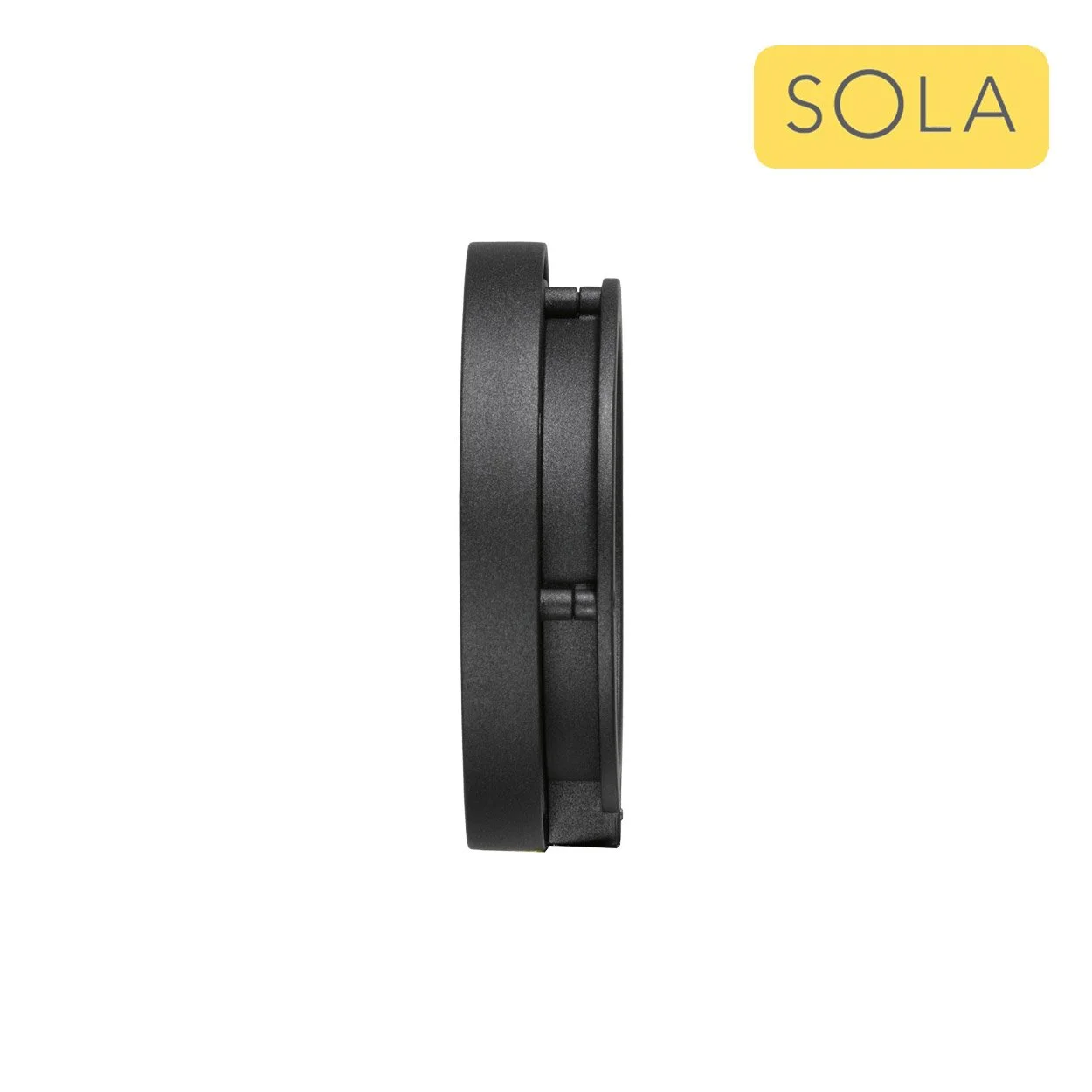

Bowens Adaptor Ring
Included in Base Kit
Aputure LS 60x. Optional Accessories.
Aputure LS60 Softbox
45cm Square softbox complete with-
Speedring
Half Diffusion
Full Diffusion
45° Eggcrate
Dimension: 35 x 35 x 30cm, Weight; 0.5kg
£20 Per day + VAT
Aputure Light Dome 150
5’ Octa softbox complete with 1.5 and 2.5 stop diffusions and 45° egg crate.
Dimension: Φ150cm x 80cm, Weight; 3.2kg
£30 Per day + VAT
Aputure Light Dome MKII
3’ Octa softbox complete with outer and inner diffusions and 45° egg crate.
Dimension: Φ89cm x 65cm, Weight; 2.55kg
£25 Per day + VAT
Aputure Light Dome Mini MKII
1.8’ Octa softbox complete with outer and inner diffusions and 45° egg crate.
Dimension: Φ55cm x 29cm, Weight; 1.64kg
£10 Per day + VAT
Aputure Octa Dome 120
4’ Octagonal softbox complete with-
Half Diffusion
Full Diffusion
45° Eggcrate
Dimension: Φ120cm x 53cm, Weight; 1.7kg
£25 Per day + VAT
Aputure Lantern
2.7ft Chinese Lantern. Kit includes fabric skirt, which in shown in the Lantern 90 image.
Dimension: Φ83.5cm x Depth; 18.5cm, Weight; 1.3kg
£20 Per day + VAT
Aputure Lantern 90
3ft Chinese Lantern. Kit includes 360° fabric skirt which hangs down in 4 sections approximately 25cm below diffusion. Picture above with only one section dropped.
Dimension: Φ90cm x Depth; 18.5cm, Weight; 1.3kg
£20 Per day + VAT
Aputure Space Light
Space Light with detachable 1/2 skirt.
Dimension: Φ45cm x Height; 72cm, Weight; 1.3kg
£15 Per day + VAT
Aputure Spotlight Mini Zoom
Spotlight Mini Zoom to adjust between a 15° to 30° beam spread.
18-Leaf Iris
Gobo Holder
Gobo Kit
Dimension: 17 x 28 x 38cm x Depth; 25cm (without door), Weight; 4.4kg
£40 Per day + VAT
LS 60X Specification
CCT 2700K~6500K
CRI ≥96
TLCI ≥98
CQS 95 (ave.)
SSI (D56) 74
SSI (Tungsten) 86
Beam Angle 15°~45°
Output Wattage 60W
Max Power Draw 90W
Operating Current <6.5A (Max)
Operating Voltage (Power Supply) 19V
Operating Voltage (Battery) Sony NP-F 6~8.4V (Single battery) 12~16.8V (Dual battery)
Operating Voltage (Battery) D-Tap 12 ~ 16.8V
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Control Methods On-board, Sidus Link (Sidus Mesh®)
Wireless Operating Range (Bluetooth) ≤ 80m / 262.5ft
Screen Type OLED
Weatherproofing Yes
Cooling Method Active Cooling
Cable Type: Head Cable 4-pin DC Twist Lock Cable
Cable Type: Power Cable Locking IEC Power Cable (4m)
Accessory Mount LS 60 Mini Mount
Accessory Mount Diameter 120mm / 4.72in
Mounting 16mm | 5/8in (Baby Pin)
DIMENSIONS
Dimensions: Lamp Head without Yoke 209*116mm / 8.23*4.57in
Dimensions: Lamp Head with Yoke 280*156*127mm / 11.02*6.14*5in
Dimensions: Barn Doors Closed 134*108*33mm / 5.28*4.25*1in
Dimensions: Power Supply 135*56*34mm / 5.31*2.2*1in
Dimensions: NP-F Battery Plate 103*87*25mm / 4.06*3.43*1in
Dimensions: Case 420*200*200mm / 16.54*7.87*8in
WEIGHT
Weight: Lamp Head 1.8kg / 3.968lbs
Weight: Barn Doors 222g / 0.489lbs
Weight: Power Supply 370g / 0.816lbs
Weight: NP-F Battery Plate 134g / 0.295lbs
Weight: Total w/ Case 4.475kg / 9.866lbs
