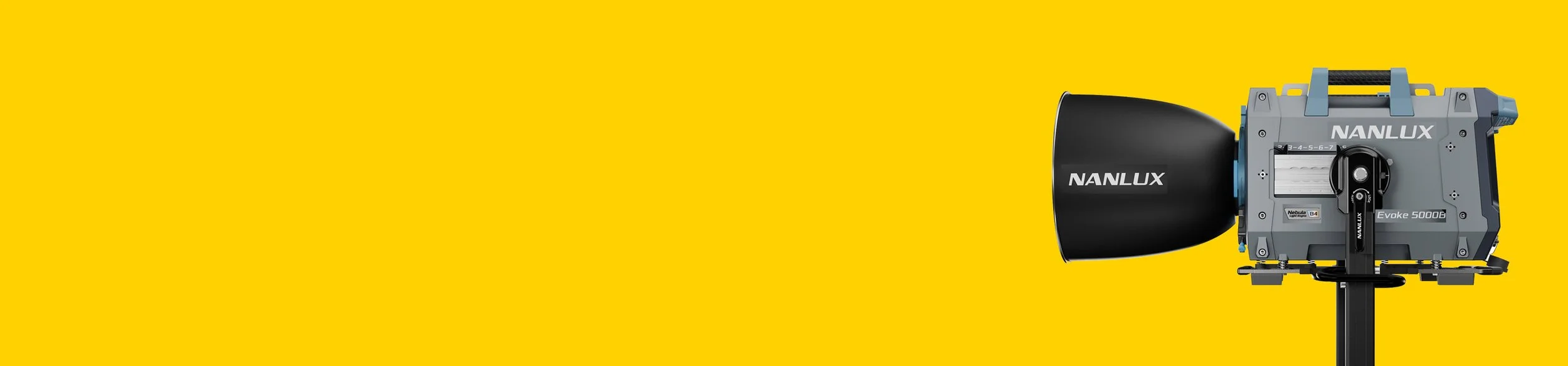

Nanlux Evoke 5000B | 5000W Bi-Colour LED Spotlight
Overview
The Nanlux Evoke 5000B is an ultra high-output bi-colour LED spotlight designed for large-scale film, TV and commercial production. Available for hire in London, it delivers exceptional output for daylight balancing, large interiors and exterior production while offering the flexibility, efficiency and control of modern LED technology.
Key Features
• Extreme Output Performance – One of the most powerful LED spotlights available, suitable for large-scale lighting applications and daylight balancing.
• Bi-Colour Light Engine – Delivers excellent colour accuracy across a wide colour temperature range for maximum flexibility on set.
• Wide CCT Range – Adjustable from 2700K to 6500K for matching daylight, tungsten and mixed lighting environments.
• FL-45E Motorised Fresnel Compatibility – Supports Nanlux's motorised Fresnel for increased output and remote beam control.
• Professional Control – DMX, CRMX, Art-Net and Nanlink App control for integration into advanced lighting workflows.
• Weatherproof Construction (IP66) – Fully weather-sealed design suitable for demanding exterior production environments.
• Production-Ready Build – Separate ballast, heavy-duty cabling and robust construction designed for high-end film and television production.
Typical Uses
• High-output key light for large-scale setups
• Daylight punch through windows and exteriors
• Lighting large interiors and wide environments
• Replacement for traditional HMI and tungsten fixtures
Nanlux Evoke 5000B Specifications
Output, dimensions, weight and control specifications.
• Output: up to 555,000 lux @5m (with reflector)
• CCT Range: 🟡🔵 2700K–6500K
• CRI / TLCI: ≥96 / ≥95
• Power Draw: 5000W
• Mount: NL Mount
• Control: Nanlink App / DMX / CRMX / Art-Net
• Dimming: 0–100% flicker-free
• Weight: ⚖️ approx 46kg (head)
• Weather Rating: 🚿 IP66 Weatherproof
Nanlux Evoke 5000B Base Kit
⚡ 5000W ☀️ Extreme Output 🟡🔵 Bi-Colour 🚿 IP66 🎛️ DMX / CRMX
Base kit includes:
• Evoke 5000B head
• 45° reflector
• Ballast / controller
• Head feeder cable
• Power lead
• Controller accessories
£575 per day + VAT
Nanlux Evoke 5000B
Included in Base Kit
Nanlux Reflector 45°
Included in Base Ki. RF-NLM-45-EV2400 Reflector 45°
Power Supply-Internal
Accessories
Accessories; Remote controller, 32A power cable 2M , WC-EXT wired controller with cable
Nanlux 5000B Optional Accessories

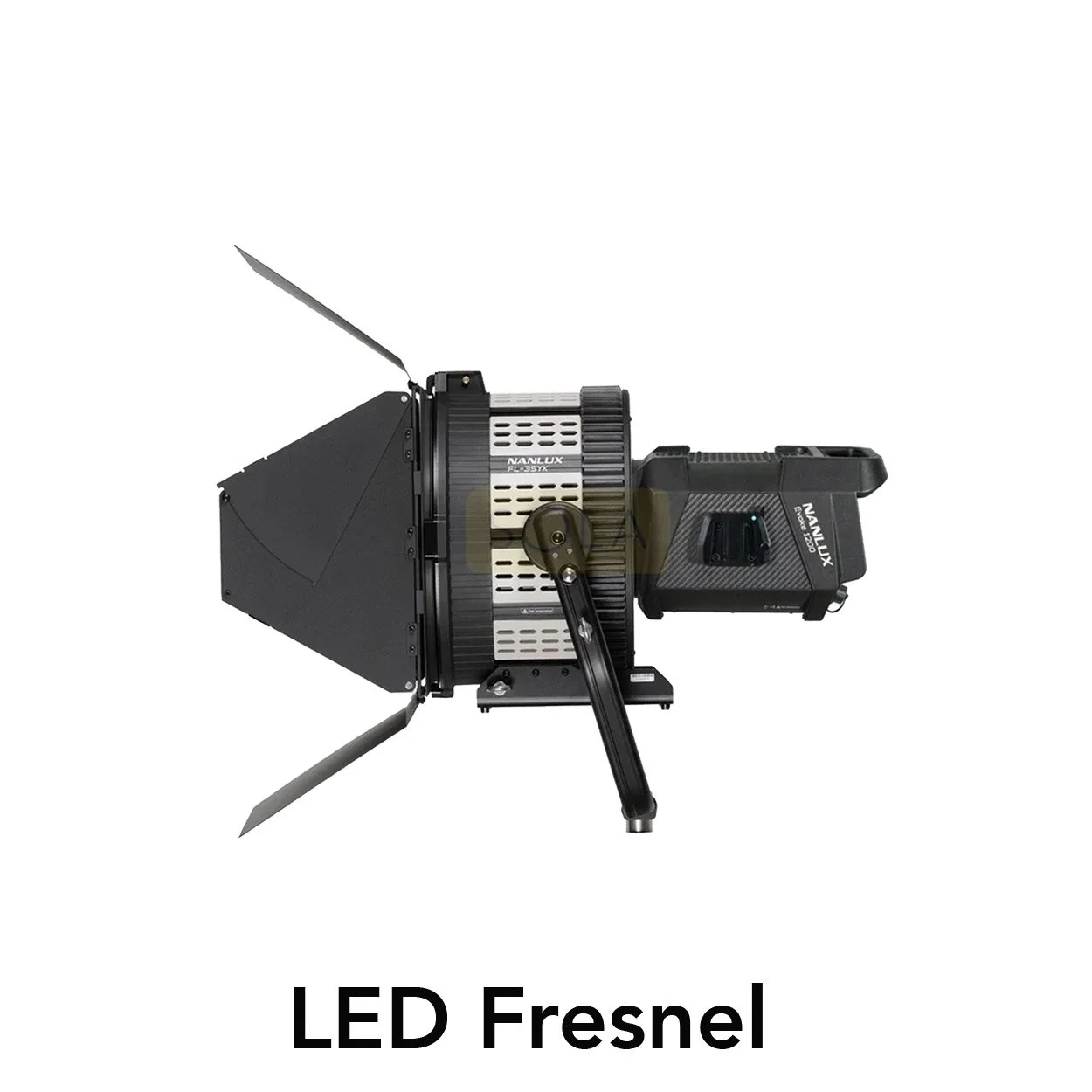

Nanlux FL-45E Fresnel
• Type: Motorised Fresnel Lens Attachment
• Mount: 🔄 NL Mount
• Beam Angle: ↔ 15°–46° Motorised Zoom
• Control: 🎛️ On-Board, Wired Controller, NANLINK App & DMX
• Shaping: ✂️ Barn Doors Included
• Dimensions: 43.1cm × 49cm × 33cm
• Weight: 10kg (Barn Doors 2.3kg)
£40 per day + VAT
Nanlux Square Softbox 100
• Type: Square Softbox
• Size: ↔ 100cm × 100cm (3' × 3')
• Diffusion: ⚪ Light & Full Diffusion Included
• Control: ⬛ 45° Fabric Egg Crate Included
• Dimensions: 100cm × 100cm × 56cm
• Weight: 2.2kg
£20 per day + VAT
Nanlux Lantern Softbox 120
• Type: Lantern Softbox
• Size: ↔ 120cm (4') Diameter
• Output: ↔ 360° Soft Light
• Diffusion: ⚪ Omnidirectional Soft Spread
• Control: ⬛ 2 × Blackout Skirts Included
• Dimensions: Ø120cm × 85cm Deep
• Weight: 2.8kg
£25 per day + VAT
Nanlux Parabolic Softbox 120
• Type: Parabolic Softbox
• Size: ↔ 120cm (4') Diameter
• Diffusion: ⚪ Light & Full Diffusion Included
• Control: ⬛ Fabric Egg Crate Included
• Dimensions: Ø120cm × 80cm Deep
• Weight: 4.2kg
£25 per day + VAT
Nanlux Parabolic Softbox 150
• Type: Parabolic Softbox
• Size: ↔ 150cm (5') Diameter
• Diffusion: ⚪ Light & Full Diffusion Included
• Control: ⬛ Fabric Egg Crate Included
• Dimensions: Ø150cm × 88cm Deep
• Weight: 5.5kg
£30 per day + VAT
Nanlux Softbox OCTA 150
• Type: Octagonal Softbox
• Size: ↔ 150cm (5') Diameter
• Diffusion: ⚪ Light & Full Diffusion Included
• Control: ⬛ Fabric Egg Crate Included
• Dimensions: Ø150cm × 58cm Deep
• Weight: 5.5kg
£30 per day + VAT
Parallel Beam Reflector RF-NL-PB
NL70
• Type: Parallel Beam Reflector
• Beam Angle: 🔍 6° Parallel Beam
• Output: ☀️ Ultra-High Intensity Long-Throw Light
• Compatibility: Evoke 900C / 1200 / 1200B / 2400B / 5000B
• Includes: Snoot
• Dimensions: Ø78cm × 50cm Deep
• Weight: 9.37kg
£100 per day + VAT
Nanlux Reflector Set - 30º / 45º / 60º
• Type: Reflector Kit
• Beam Angles: 🔍 30° / 45° / 60°
• Mount: 🔄 NL Mount
• Detection: ⚡ Automatic Beam Angle Recognition
• Output: ☀️ Optimised & Consistent Light Distribution
• Compatibility: Nanlux NL Mount Fixtures
£25 per day + VAT

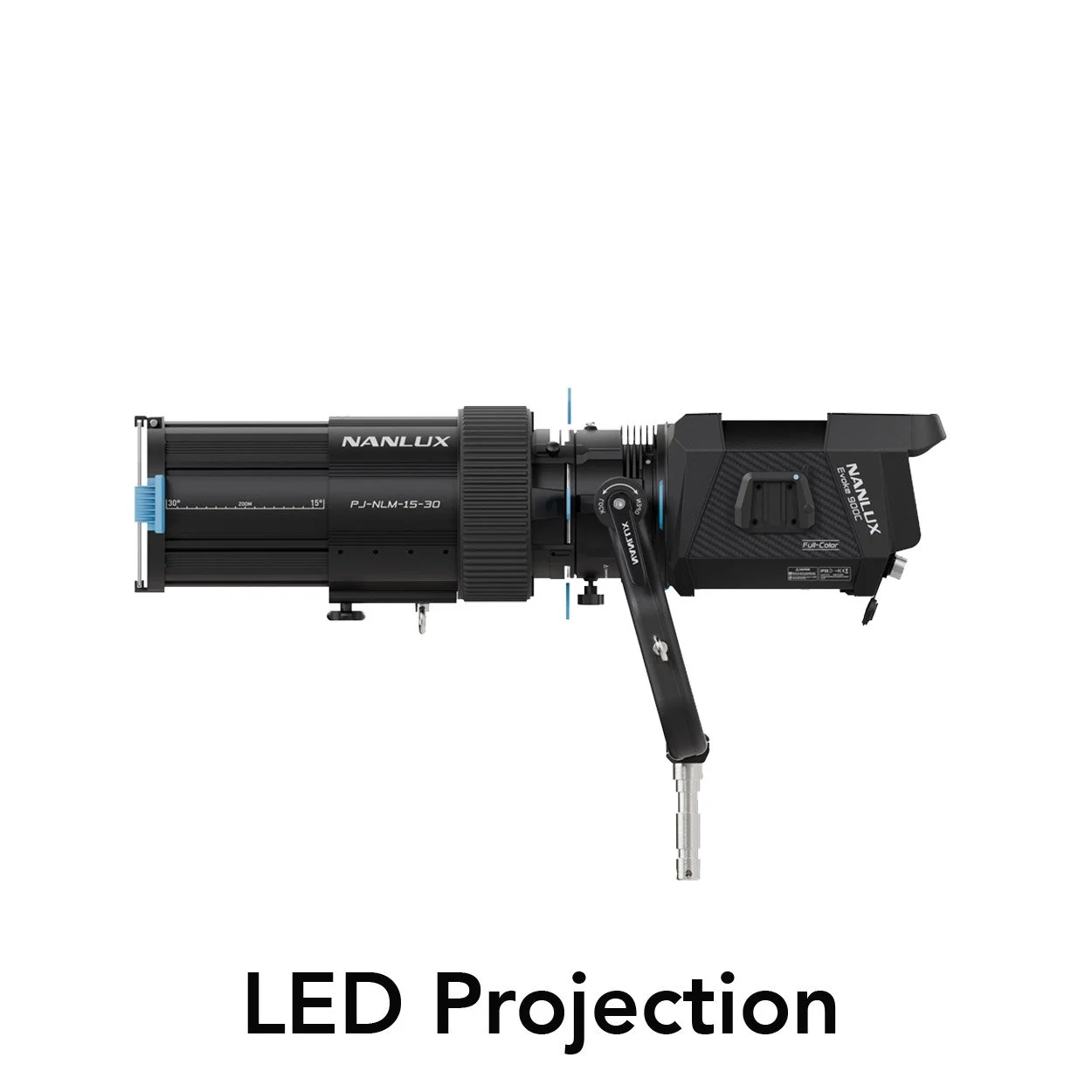

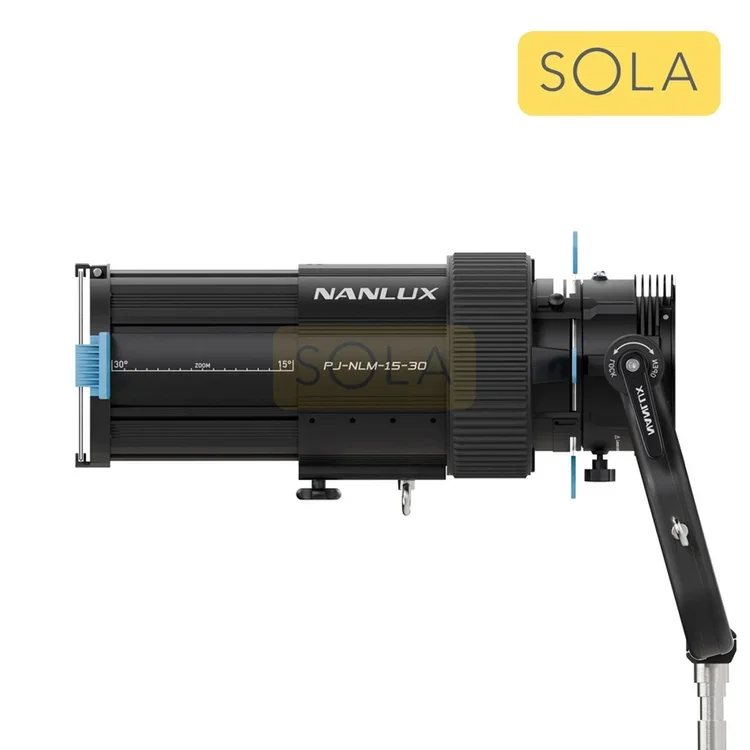

Nanlux Projection Attachment 15°–30°
• Type: Projection Optic
• Beam Angle: 🔍 Adjustable 15°–30° Zoom
• Beam Control: ✂️ Precision Shutter Blades
• Effects: 🎭 Gobo Projection Compatible
• Mount: 🔄 NL Mount
• Compatibility: Evoke 1200 / 1200B / 2400B / 5000B*
When used on the Evoke 5000B, fixture output is automatically limited by the light for safe operation.
£70 per day + VAT
