Stands & Grip Equipment



Stands, rigging and support for fast, safe setups — from lightweight builds to full studio rigs.




Stands & Grip



Strato Safe Stand 18


⬆️ Maximum Height: 175cm
⬇️ Minimum Height: TBC
↔️ Closed Length: 126cm
🏋️ Max Load: 100kg
🔺 Footprint: 120cm
🔩 Spigot: 28mm Receptacle (Junior Receiver)
⚖️ Weight: 30.7kg

Easy Lift 5-Section B150


⬆️ Maximum Height: 610cm
⬇️ Minimum Height: 190cm
↔️ Closed Length: 225cm
🏋️ Max Load: 70kg
🔺 Footprint: 213cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 76.0kg

Long John Silver


⬆️ Maximum Height: 570cm
⬇️ Minimum Height: 177cm
↔️ Closed Length: 224cm
🏋️ Max Load: 120kg
🔺 Footprint: 240cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 85.0kg

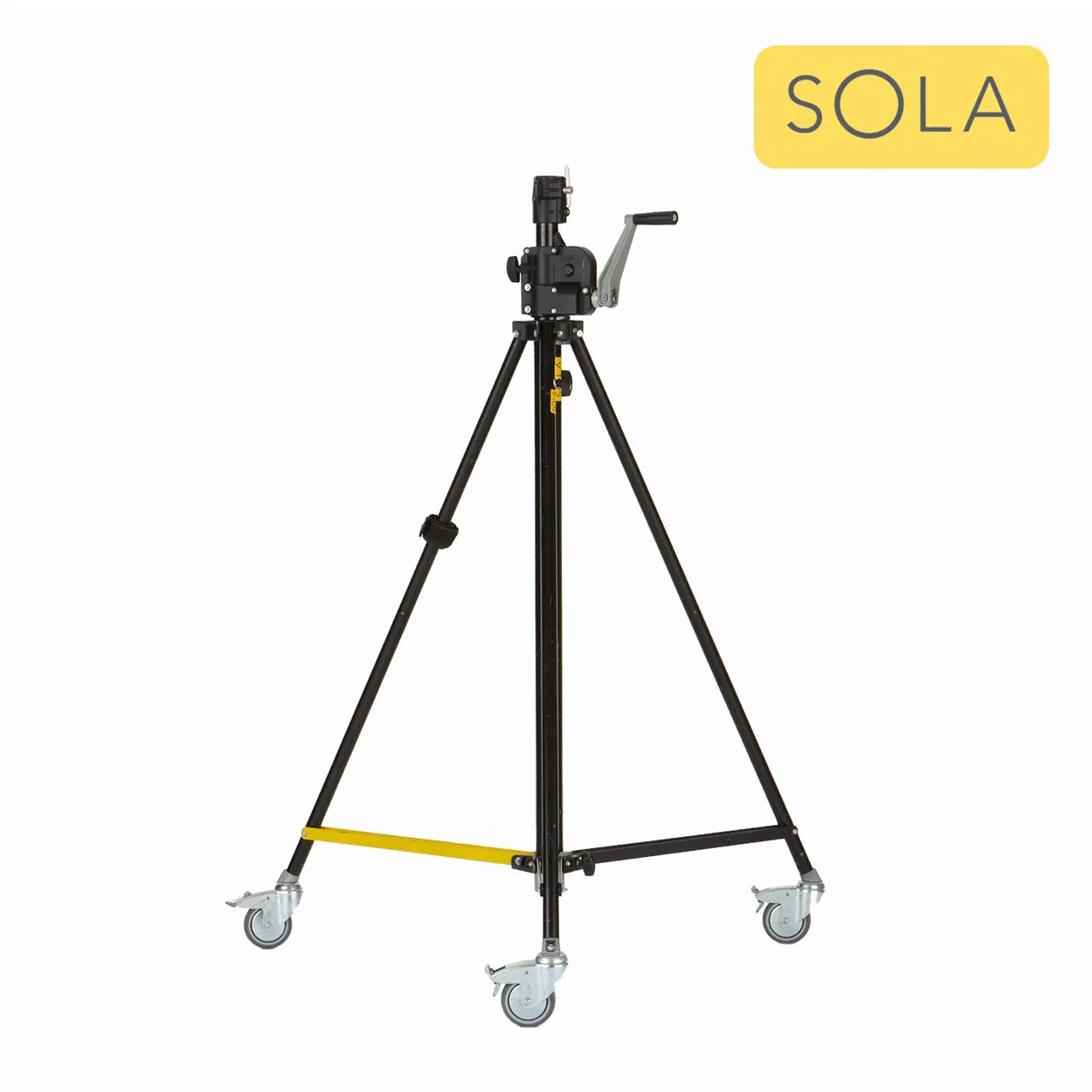

Super Wind Up


⬆️ Maximum Height: 366cm
⬇️ Minimum Height: 156cm
↔️ Closed Length: 179cm
🏋️ Max Load: 80kg
🔺 Footprint: 240cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 32.5kg


Double Wind-Up Stand


⬆️ Maximum Height: 370cm
⬇️ Minimum Height: 167cm
↔️ Closed Length: 181cm
🏋️ Max Load: 30kg
🔺 Footprint: 128cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 21.4kg

Single Wind-Up Stand


⬆️ Maximum Height: 247cm
⬇️ Minimum Height: 139cm
↔️ Closed Length: 163cm
🏋️ Max Load: 45kg
🔺 Footprint: 128cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 16.0kg

High Roller Stand


Ideal for holding lighting frames, diffusion textiles, flags and other grip accessories.

⬆️ Maximum Height: 420cm
⬇️ Minimum Height: 183cm
↔️ Closed Length: 142cm
🏋️ Max Load: 40kg
🔺 Footprint: 150cm
🔩 Spigot: 28mm Receptacle with Large Grip Head
⚖️ Weight: 15.4kg

Medium Roller Stand


Ideal for holding lighting frames, diffusion textiles, flags and other grip accessories.

⬆️ Maximum Height: 310cm
⬇️ Minimum Height: 130cm
↔️ Closed Length: 150cm
🏋️ Max Load: 40kg
🔺 Footprint: 150cm
🔩 Spigot: 28mm Receptacle with Large Grip Head
⚖️ Weight: 14.0kg


Low Roller Stand


Low-level roller stand for studio lighting.

⬆️ Maximum Height: 212cm
⬇️ Minimum Height: 114cm
↔️ Closed Length: 179cm
🏋️ Max Load: 40kg
🔺 Footprint: 104cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 11.5kg

Wide Base Overhead Stand


Ideal for holding lighting frames, diffusion textiles, flags and other grip accessories on rough terrain, with a wide footprint for increased stability.

⬆️ Maximum Height: 557cm
⬇️ Minimum Height: 199cm
↔️ Closed Length: 195cm
🏋️ Max Load: 40kg
🔺 Footprint: 196cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 16.8kg

High Folding Base Stand


Compact folding-base stand for studio lighting.

⬆️ Maximum Height: 340cm
⬇️ Minimum Height: 130cm
↔️ Closed Length: 124cm
🏋️ Max Load: 20kg
🔺 Footprint: 100cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 10.7kg

Low Folding Base Stand


Ultra-low stand for floor-level lighting applications.

⬆️ Maximum Height: 122cm
⬇️ Minimum Height: 80cm
↔️ Closed Length: 70cm
🏋️ Max Load: 25kg
🔺 Footprint: 75cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 8.0kg


Combo 4-Section Stand


⬆️ Maximum Height: 408cm
⬇️ Minimum Height: 167cm
↔️ Closed Length: 143cm
🏋️ Max Load: 30kg
🔺 Footprint: 135cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 6.9kg

Combo 3-Section Stand


⬇️ Minimum Height: 158cm
↔️ Closed Length: 134cm
🏋️ Max Load: 30kg
🔺 Footprint: 135cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 6.2kg

Pup Stand


⬆️ Maximum Height: 315cm
⬇️ Minimum Height: 124cm
↔️ Closed Length: 122cm
🏋️ Max Load: 12kg
🔺 Footprint: 118cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 3.0kg

Giraffe Stand/Pup Roller


⬆️ Maximum Height: 315cm
⬇️ Minimum Height: 124cm
↔️ Closed Length: 122cm
🏋️ Max Load: 12kg
🔺 Footprint: 118cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 3.0kg


Master Stand


⬆️ Maximum Height: 385cm
⬇️ Minimum Height: 109cm
↔️ Closed Length: 107cm
🏋️ Max Load: 9kg
🔺 Footprint: 109cm
🔩 Spigot: 16mm Pin
⚖️ Weight: 6.9kg

Follow Spot Stand


⬆️ Maximum Height: 148cm
⬇️ Minimum Height: 90cm
↔️ Closed Length: 106cm
🏋️ Max Load: 80kg
🔺 Footprint: 94cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 7.6kg

C-Stand


C-Stand 20": 84–175cm
C-Stand 30": 110–253cm
🔺 Footprint: 95cm
🔩 Spigot: 16mm Pin

London Grip C-Stand Cart


Capacity: Holds 6 or 10 C-Stands

🛞 Mobility: Large wheels for easy transport on set
📦 Storage: Keeps C-Stands organised and accessible
⚖️ Application: Suitable for studio and location use


Turtle Stand


⬆️ Height: 27cm
🔺 Footprint: 95cm
🔩 Spigot: 28mm Receptacle
⚖️ Weight: 3.0kg

Turtle Stand Wheeled

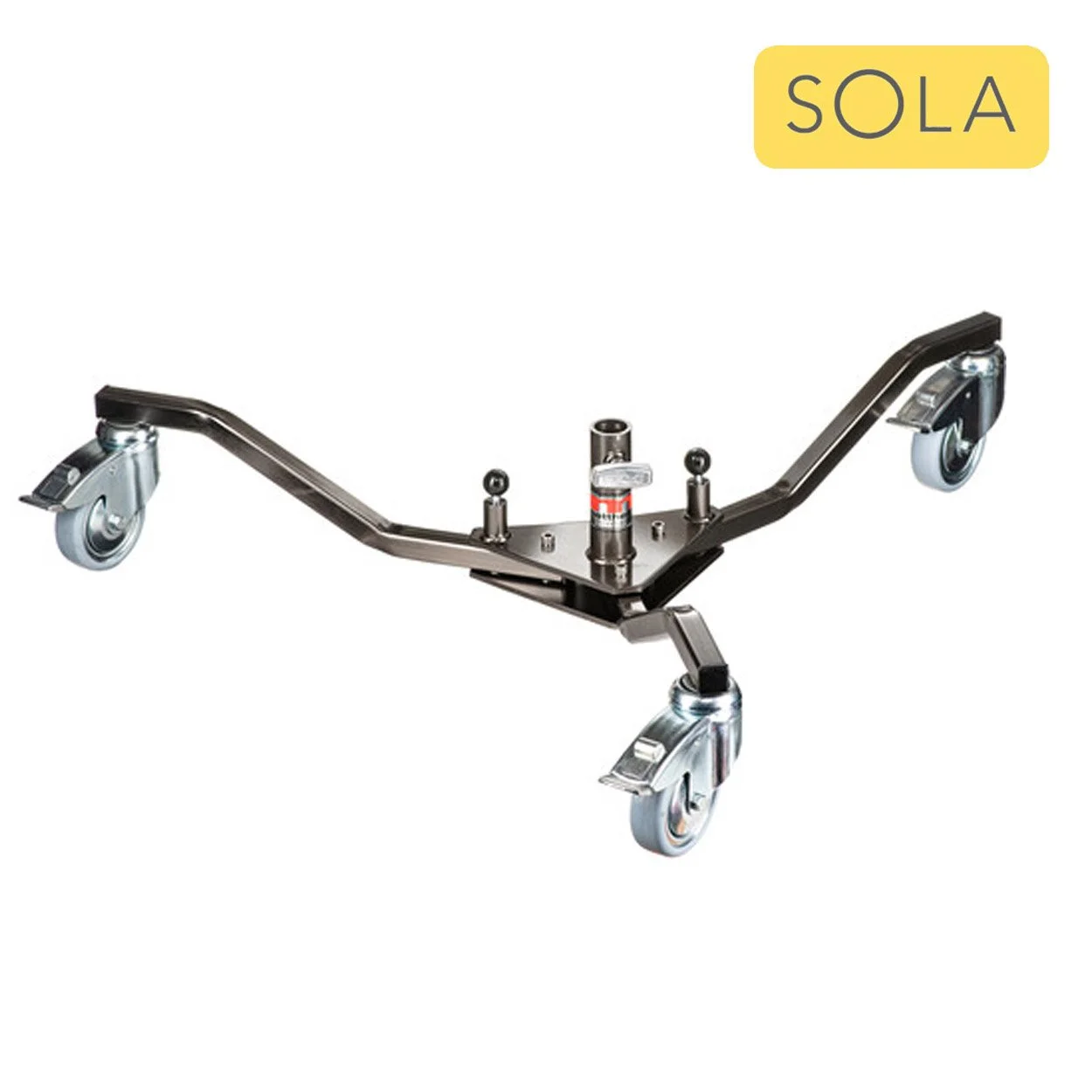

Matthews Runway Base Stand

🏋️ Max Load: 136kg
🔺 Footprint: 82cm × 82cm
🔩 Spigot: Junior 28mm Receiver
↔️ Closed Length: 89cm
⚖️ Weight: 12.7kg




Lighting Booms



Mini Boom


Maximum extension from centre; 212cm, Closed length; 123cm, Spigot; 16mm pin, Weight 4.30kg

Remote/Giraffe Boom


Maximum extension from centre; 170cm, Closed length; 260cm, Spigot; 16mm pin, Weight 4.20kg

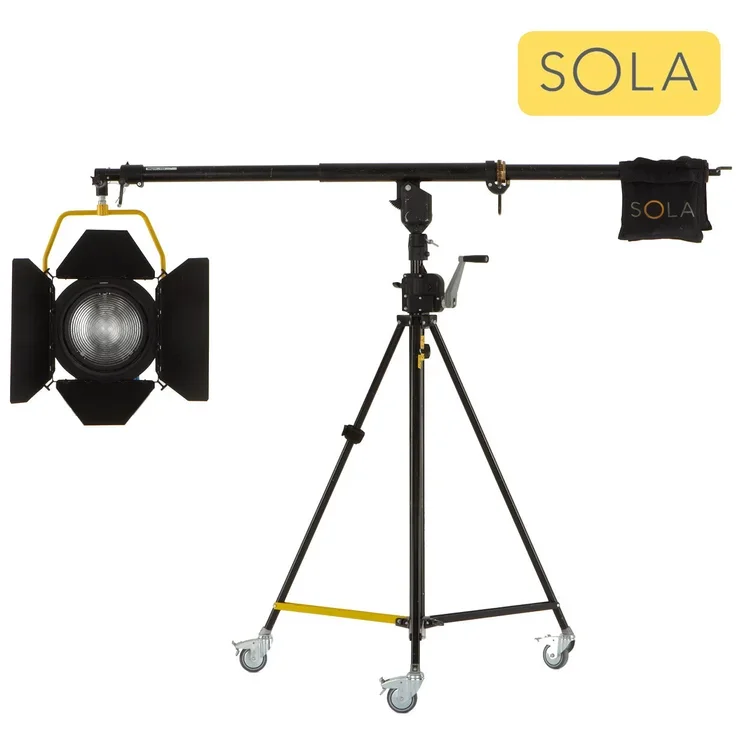

Mega Boom

Maximum extension from centre; 256cm, Minimum extension; 107cm, Closed length; 225cm, Spigot; 28mm receptacle, Weight 14.50kg

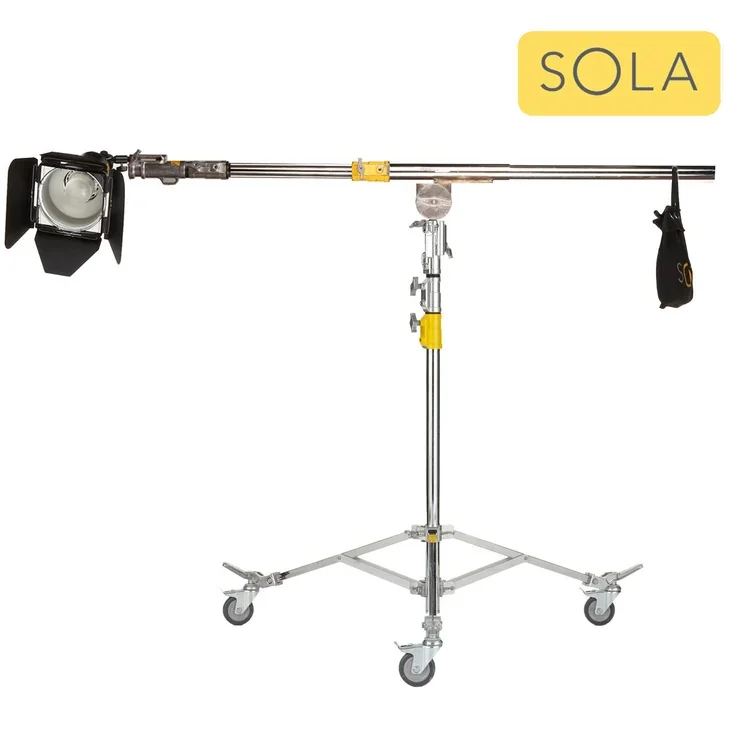

D650 Boom

Maximum extension from centre; 220cm, Closed length; 163cm, Spigot; 28mm receptacle, Weight 9.00kg




Clamps and Grip Accessories



Poly Holder


25mm Holder, Spigot; 16mm pin, 22 x 15cm, Weight; 0.66kg

50mm Holder, Spigot; 9mm pin, 22 x 15cm, Weight; 0.80kg

Poly Fork


Spigot 16mm`pin, Weight; 0.2kg

Platypus Clamp


Clamp range; 1mm-50mm, Spigot; 16mm pin, Weight 0.88kg

Floor Poly Holder


50mm/2” Holder, Weight 0.50kg


Frame Clamp


Clamping range 0-55mm, Spigot 16mm pin, Weight; 1.12kg,

Cardellini Clamp


End jaw, Length; 27cm, Jaw opening; 15cm, Jaw width; 7cm, Spigot; 16mm pin, Weight 0.60kg

Centre jaw, Length; xcm,Jaw opening; 5cm, Jaw Width; 7cm, Spigot; 18mm pin, Weight 0.60kg

Big Ben


Clamping range; 42-52mm, Spigot; 28mm pin, Weight 0.70kg

Barrel Clamp


Clamping range; 42-52mm Spigot 28mm receptacle and 16mm pin Weight 0.70kg

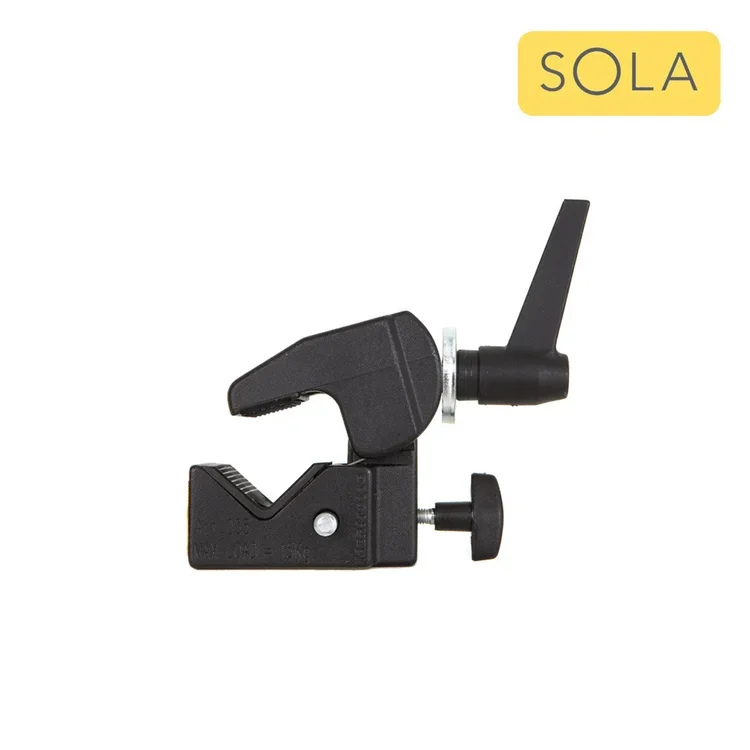

Super Clamp 035

Clamp range; 13-55mm, Max load; 15kg, Spigot fitting; 16mm receptacle, Weight 0.43kg

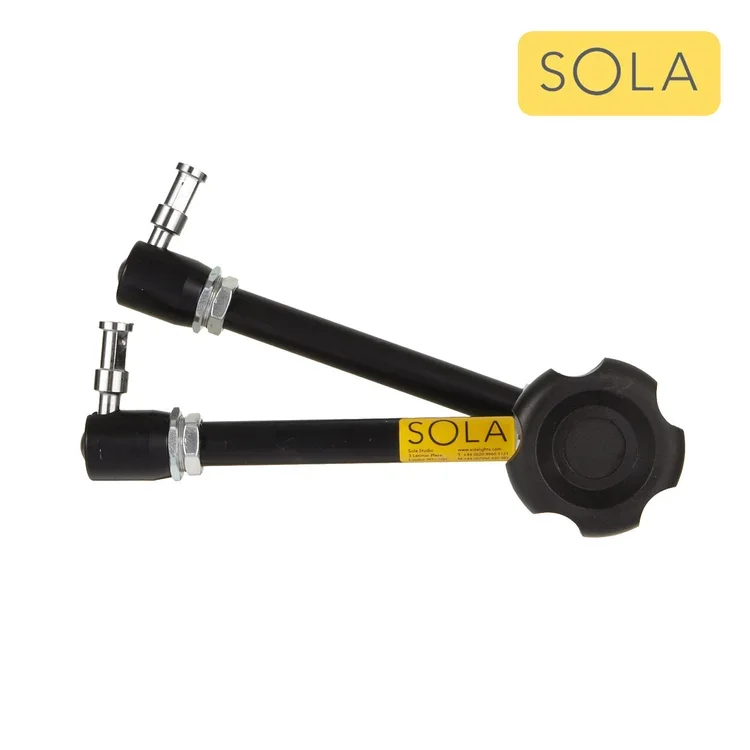

Magic Arm

Arm length 53cm, Max load; 3kg, Spigot fitting; 16mm pin threaded with 3/8 and 5/8 female, Weight 1.09kg


Drop Arm


Clamped Arm; Maximum drop; XXcm, Minimum drop; XXcm

Spigot Arm; Drop; XXcm

Low Lift Set


Small; 15cm, medium; 27cm, large; 68cm, Weight, small; 1.1kg, medium 1.7kg, large 1.80kg

High Lift


Maximum extension; 130cm, Minimum extension 87cm; Weight; 4.60kg

Grip Helper

Maximum drop; 130cm, Minimum drop; 87cm


G-Clamp


Jaw opening small; 13.5cm, medium; 18.5cm, large; 23.5cm, Weight, small; 2.20kg, medium 2.70kg, large 3.40kg, Spigot 22mm receptacle

Auto Pole


Small; 105-175cm, medium; 155-270cm, large; 226-377cm, Weight, small; 1.8kg, medium 1.90kg, large 2.50kg

Apple Box Set


Dimension; length x width 50cm x 30cm, Small height; 2.5cm, Medium height; 5cm, Large height; 10cm, Extra large height 20cm

Italian Clamp


Clamping range; 15mm-60mm, Spigot 16mm pin, Weight; 1.38 kg


Scaffold Tube


External Diameter; 48.3mm, Standard lengths; 1’, 2’, 4’, 8’, 10’ 12’, 16’ and 20’

Scaffold Fitting


Internal Diameter; 48.3mm, Single coupler, double coupler, swivel coupler.

Scaffold Coupler


Internal Diameter; 48.3mm,

Key Clamp


Internal Diameter; 48.3mm, Right angle, t-piece, joiner, plus many more on request.


Rigging Rope


Length; 50’,

Sand Bag


Weight; 8kg,

Stage Weight


Weight; 12.5kg,

Gaffer Clamp


Clamping range; xmm-xmm, Spigot 16mm pin, Weight; 1.38 kg


Set Clamp


Jaw opening; 10cm, Weight; 1.00kg

J-Hook


Mounting; 18mm pin, Weight; 0.70kg

Flag Arm


Regular length; 95cm, short 50cm, Diameter 16mm, Weight 1.00kg

Knuckle


Mounting; 18mm receptacle, Weight 0.60kg


Jumbo Knuckle


Mounting 28mm pin; Weight 2.30kg

Spigot 18mm


Diameter; 16mm, Weight 0.20kg

Spigot Brass Threaded


Diameter; 16mm, Weight 0.20kg, Thread; 3/8 and 5/8 male

Spigot 32-18mm


Diameter; 32mm to 16mm, Weight 0.70kg


Suction Clamp


Mounting; 16mm receptacle, Dimension 15 x 9cm, Weight 0.40kg

Mini Base Plate


Spigot; 16mm, Plate dimensions; 15 x 9cm with screw holes, weight 0.40kg

Safety Bond


Length; 40-60cm, Weight; 0.20kg

Swan Neck. Offset Arm


Regular length; 47cm, junior; 34cm, Weight; 1.70kg and 0.70kg
