Cable Ramp
Length; 80cm, weight; 15.00kg. 5 x Cable-slots
FDU 3 x 63A
Input; 150A BAC .1 1P looped
Output; 3 x 63A 1p with individual key switch override; MCB; 63A, RCD;30ma. Rating; IP44, Weight; 11.00kg
FDU 3 x 63A
Input; 63A CEE 3P
Output; 3 x 63A 1p with individual key switch override; MCB; 63A, RCD;30ma. Rating; IP44, Weight; 11.00kg
FDU 6x16A / 3x32A /
Input; 63A CEE 1P looped, RCD; 1 x Master 30ma
Output; 3 x 32A, 6 x 16A. Rating; IP44, Weight; 13.5kg
FDU 12x16A / 3x32A 3P
Input; 63A CEE 3P looped, RCD; Grouped 30ma
Output; 3 x 32A 3P (1P jumpers supplied on request), 12 x 16A. Rating; IP44, Weight; 27.00kg
FDU 16A 4-Way
Input; 32A CEE 1P
Output; 4 x 16A. Rating; IP44, Weight; 3.50kg, RCD; 30ma
FDU 16A 6-Way
Input; 32A CEE 1P
Output; 6 x 16A. Rating; IP44, Weight; 3.50kg, MCCB 16A
FDU 32A 3-Way
Input; 32A CEE 3P
Output; 3 x 32A. Rating; IP44, Weight; 7.00kg, RCD
FDU 16A 6-Way SP
Input; 32A CEE 3P
Output; 6 x 16A. Rating; IP44, Weight; 4.5kg, 16A MCB
RCD 16A
Input; 16A CEE 1P
Output; 16A CEE 1P, Rating; IP44, Weight; 1.00kg, RCD 30ma
RCD 32A
Input; 32A CEE 1P
Output; 32A CEE 1P, Rating; IP44, Weight; 2.00kg, RCD 30ma
RCD 63A
Input; 63A CEE 1P
Output; 63A CEE 1P, Rating; IP44, Weight; 4.50kg, RCD 30ma

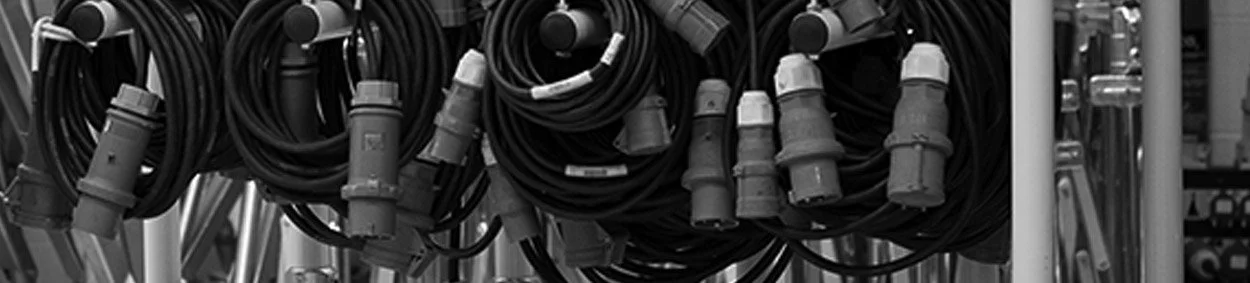

63A 1P Cable Extension
8M
16M
32M
32A 1P Cable Extension
8M
16M
32M
16A 1P Cable Extension
8M
16M
32M
63A 3P Cable Extension
8M
16M
32M
32A 3P Cable Extension
8M
16M
32M
16A 3P Cable Extension
8M
16M
32M
150A BAC Cable Extension Single Core
2m Single core
8m Single core
16m Single core
32m Single core
150A BAC Cable Extension Three Core
2m Three core
8m Three core
16m Three core
32m Three core
13A Adaptor
13A > 16A
16A > 13A 2 Way
16A > 13A 4 Way
Y-Cord Adaptor
16A > 16A
32A > 16A
32A > 32A
63A > 32A
Step Up Adaptor
16A > 32A 1P
32A > 63A 1P
16A > 32A 3P
32A > 63A 3P
Euro Adaptor
Configuration as Required
1 x 2.5K Dimmer
Input; 16A CEE 1P
Output; 1 x 16A 1P. Weight; 1.4kg, 10A MCB
1 x 3K DMX Dimmer
Input; 16A CEE 1P
Output; 1 x 16A 1P. Weight; 3.20kg, 12A MCB
1 x 5K Dimmer
Input; 32A CEE 1P
Output; 1 x 32A 1P. Weight 3.30kg, 20A MCB
1 x 5K DMX Dimmer
Input; 32A CEE 1P
Output; 1 x 32A 1P. Weight 3.30kg, 20A MCB
1 x 15K Dimmer
Input; 63A CEE 1P
Output; 1 x 63A 1P. Weight 8.6kg, 63A MCB
6 x 2.5K Dimmer
Input; 63A CEE 1P
Output; 6 x 16A 1P. Weight 30kg, xA MCB
3 x 5K Dimmer
Input; 63A CEE 1P
Output; 3 x 32A 1P. Weight 30kg, xA MCB
1 x 2.5K Flicker Unit
Input; 16A CEE 1P
Output; 1 x 16A 1P. Weight 1.4kg, xA MCB
12/24 Way Juggler Desk
Features; Two preset operation (12 way), wide mode (24 way), flash buttons, 12 sequences of 99 steps
Socapex Cable Extension
DMX 5-Pin Cable Extension
2M
5M
10M
15M
Lumen Radio. Wireless Control.
Protocols; CRMX, DMX transceiver (TR and RX), bluetooth 5, RDM (receiver mode). Connectors; DMX 5-pin, USB micro-b (5V DC supply for internal rechargeable battery.)
