With a built in power supply and IP65 protection the vortex is a great all-weather option. RGBW with high speed mode to 5000fps with shutter sync.
LED power of 650w is equivalent to 1200W fresnel. Using without a diffuser the light has direction, with a focus of 20º
See below for details of what is included in the base kit and other optional accessories.
Map and control zones on the Vortex 8. with and without diffusion dome.
Creamsource Vortex 8 Base Kit. £245 Per day + VAT

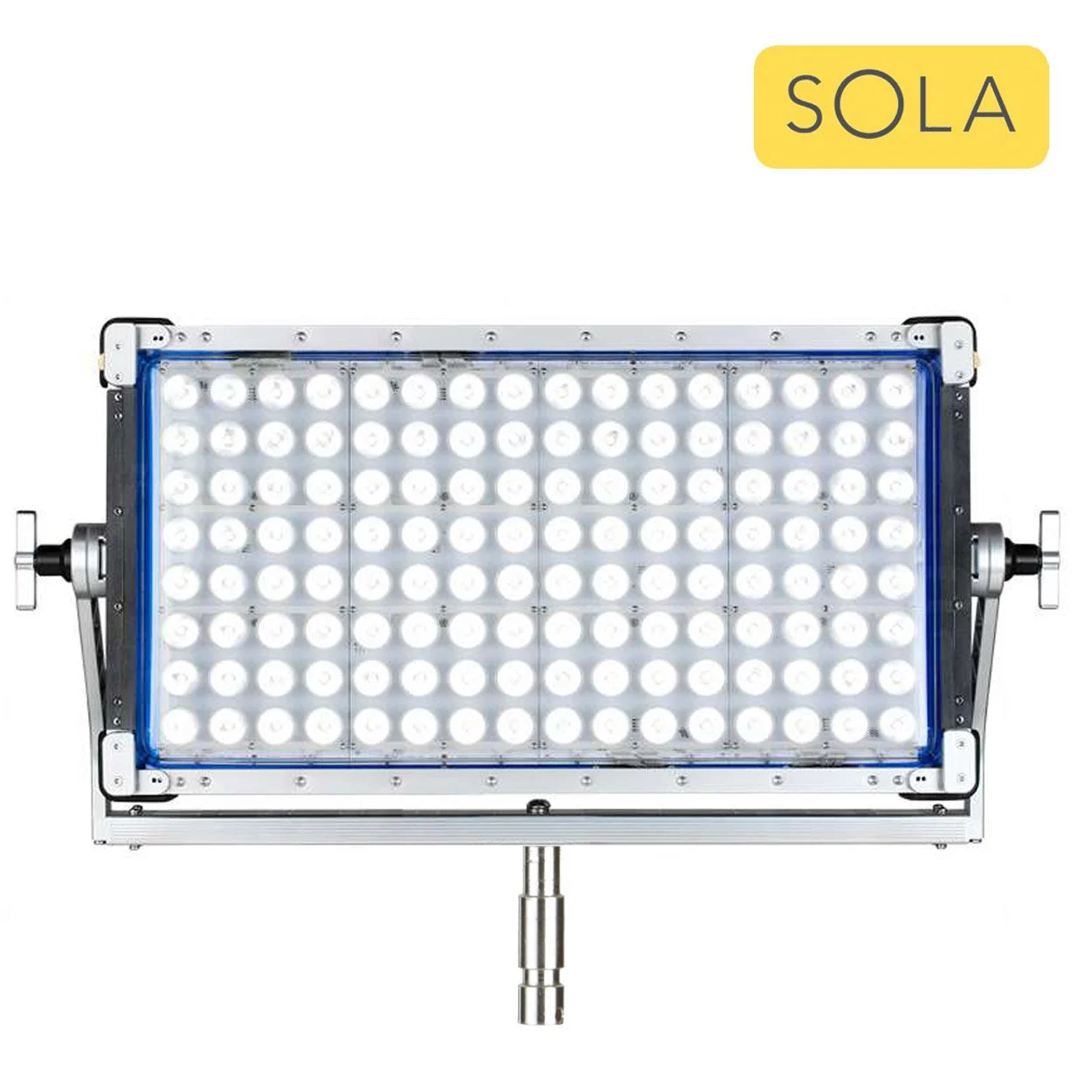

Head. Creamsource Vortex 4
Included in Base Kit
Power Lead
Included in Base Kit-
16A > Neutrik® powerCON TRUE1 TOP

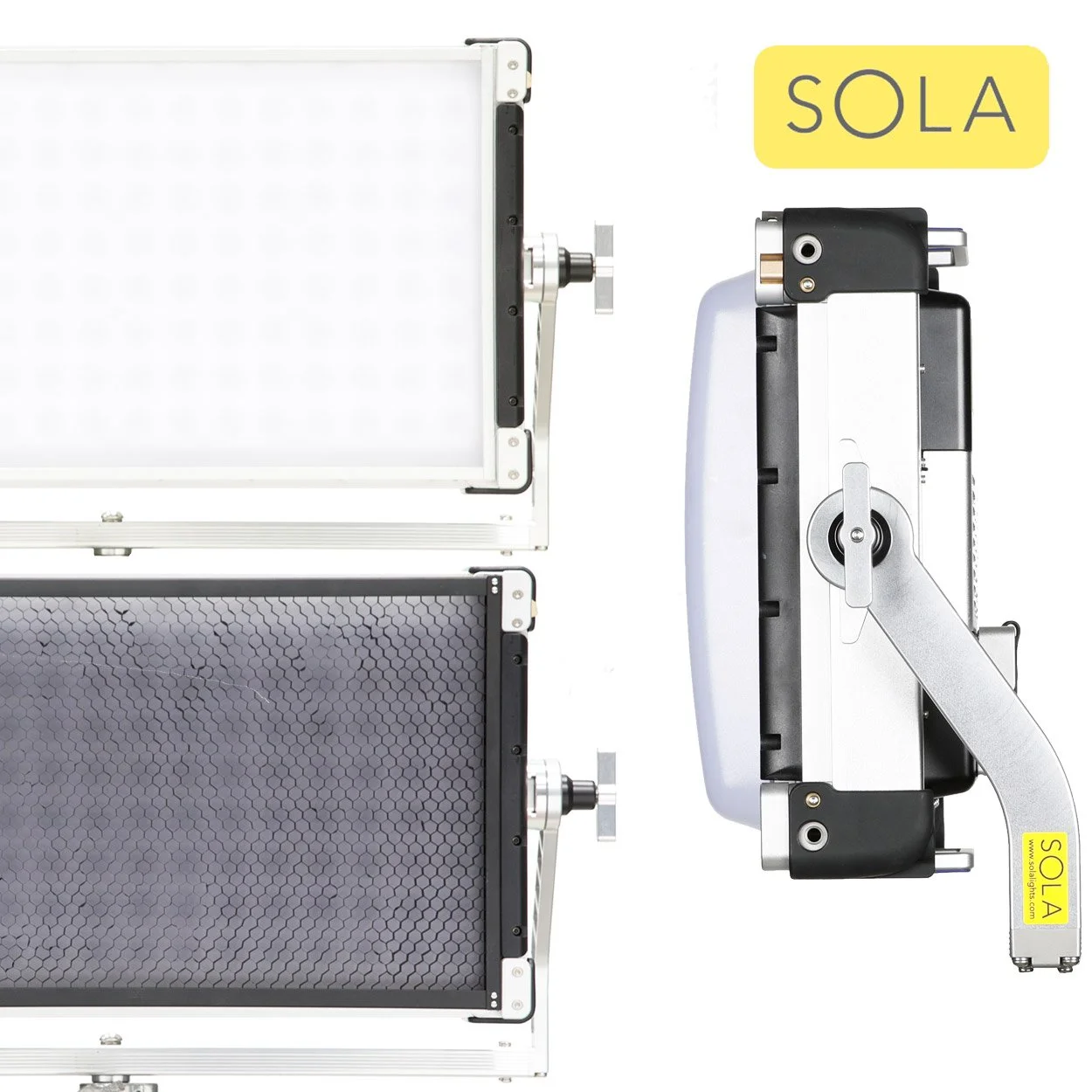

Diffusion Panel, Dome and Eggcrate
Included in Base Kit-
Flat Diffusion (top left)
Domed Diffusion (right)
Honeycomb (botton left)

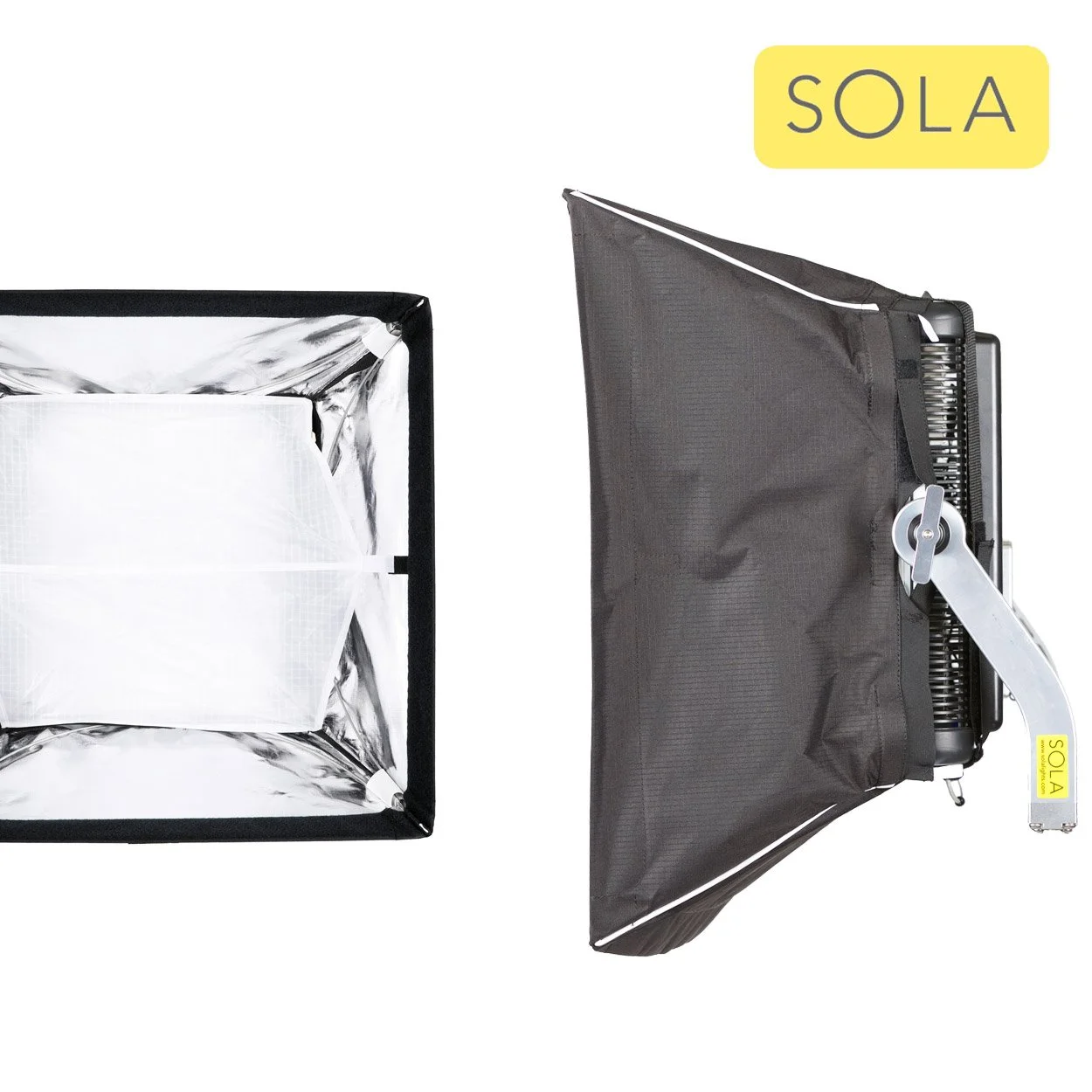

DOP Choice Medium Softbox/Snapbag
Included in Base Kit-
Image shown with fixed internal diffusion. Front diffusion and soft egg crate also supplied.
Creamsource Votes 8 Specification
Lamp Colour
Colour; Direct RGBW with CCT, Gels, Hue Saturation, XY and Effects
CCT Range; 2200K to 15000K with Plus/Minus Green
CRI; ≥ 95
TLCI; ≥98
Lamp Misc
Cooling Method; Active Cooling
Operating Temperature; Max 40º
Dimming; 0-100% with super low end mode
Mounting; 28mm / 1.125in (Junior Pin)
High Speed; 5000fps Flicker Free
Synchronization; Sync Input for Triggering and Syncing to Camera Shutter
Protection Class; IP65
User Interface; Rear Mounted Backlit Keypad, Colour LCD Display
Power
Max Power Consumption; 660W
Max Operating Current; 6.6A
Operating Voltage (Power Supply) 100V~240V, 50Hz/60Hz
Operating Voltage (Battery) 3-Pin XLR (48V-52 DC/13.75A). Full Power.
Power Cable Neutrik® powerCON TRUE1 TOP
Control Options
On-Board Interface
DMX via standard 5-pin XLR connectors,
Wired Remote Control Accessory
Integrated Lumen radio Timo Two with Bluetooth
Ethernet
USB Type A (500mA output)
Weight
Lamp Head W/Yoke 18kg
Dimensions
Excluding Yoke; 690 x 380 x 121mm / 27.2” x 15” x 4.8”
Including Yoke; 831 x 551 x 164mm / 32.7” x 21.7” x 6.4”
