The Evoke 5000B is a 5000 W, all-in-one LED bi-colour spotlight designed for high-end professional production. Powered by the proprietary Nebula B4 light engine, it offers a flexible 2700 K–6500 K colour-temperature range with ±80 Green/Magenta adjustment, allowing precise tonal control and effortless matching to ambient or practical sources.
Its spectral performance is exceptional, delivering CRI ~97, TLCI ~98, and TM-30 Rf ~96 / Rg ~102, ensuring clean, accurate, cinematic light reproduction.
Despite its output, the fixture remains impressively compact and manageable. A magnesium-alloy housing keeps the weight to around 43–46 kg (with yoke), and the lamp head, power supply, and control system are all integrated into a single, streamlined body.
Built to withstand demanding environments, the Evoke 5000B carries an IP66 weather-resistant rating, making it suitable for outdoor and location work.
Its punchy output rivals a 9 kW HMI or 24 kW tungsten source, while providing the versatility, efficiency, and operational convenience of modern LED technology.

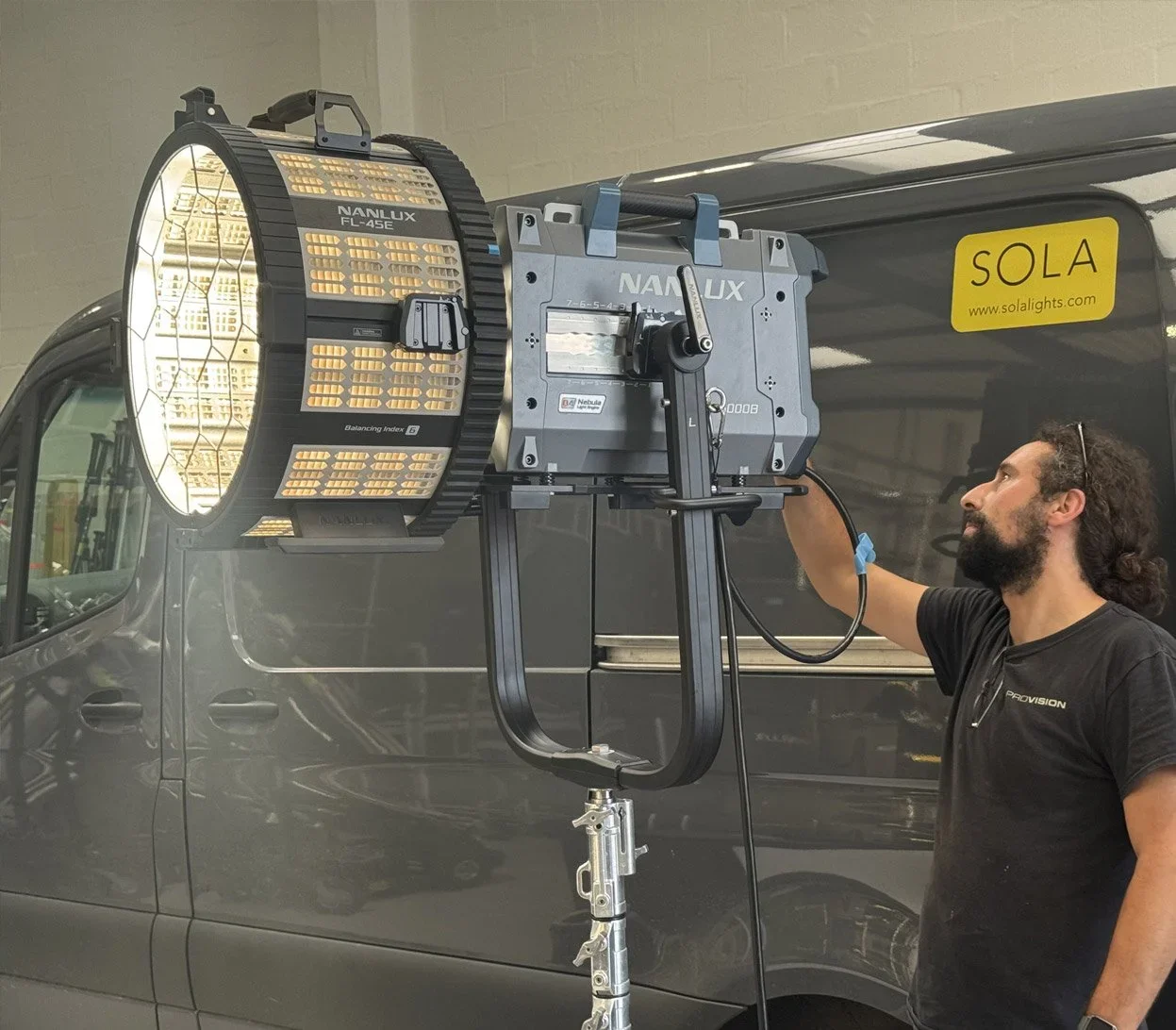

Nanlux 5000b with fresnel attachment

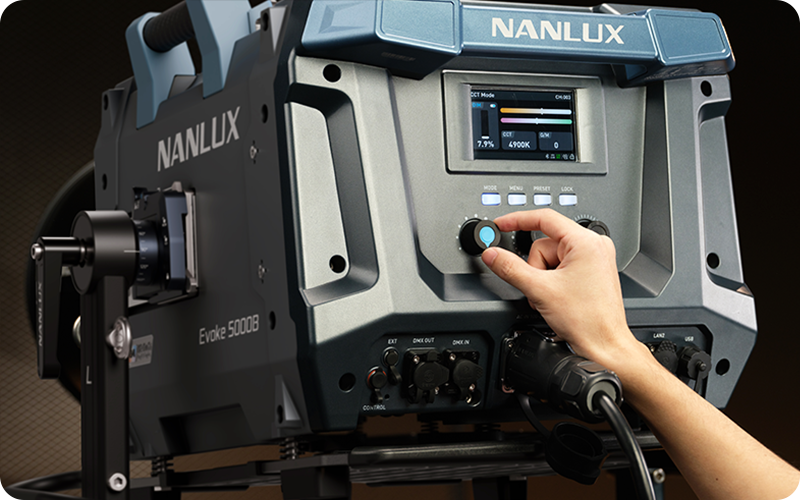

Chose between on board conrol, remote controller, nanlink app,dmx,rdm,lumen radio crmx, art-net/sacn and wired controller

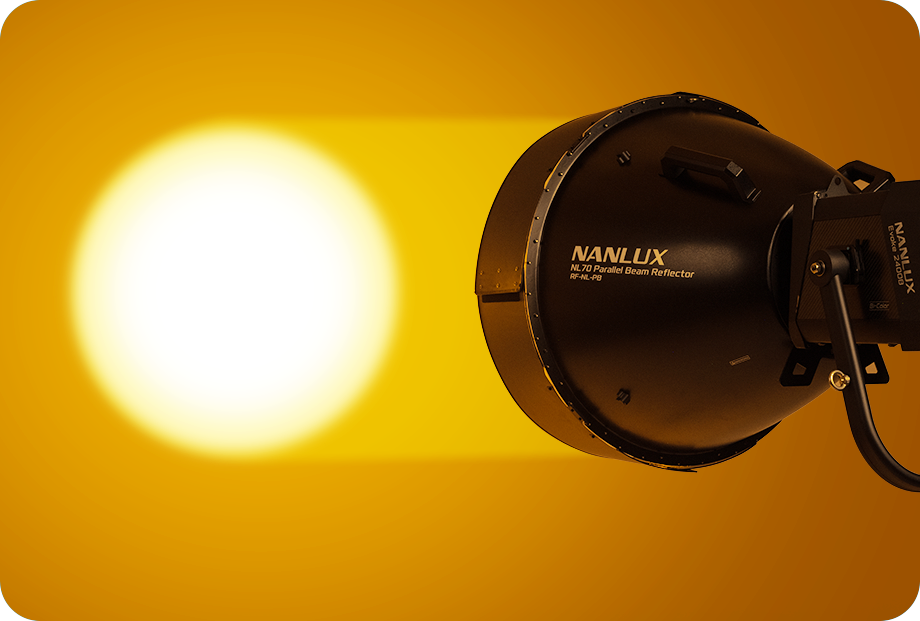

the NL70 Parallel Beam Reflector(RF-NL-PB), a professional lighting modifier with a well-defined long-throw beam and minimal light loss. It features a highly OPTIMISED optical design that works perfectly with the Nanlux Evoke 5000B and other Evoke series NL mount light fixtures, making it an excellent solution for shooting scenarios that require a high-intensity parallel beam, natural beam light with low light decay.
Nanlux 5000B Base Kit. £575 Per day + VAT

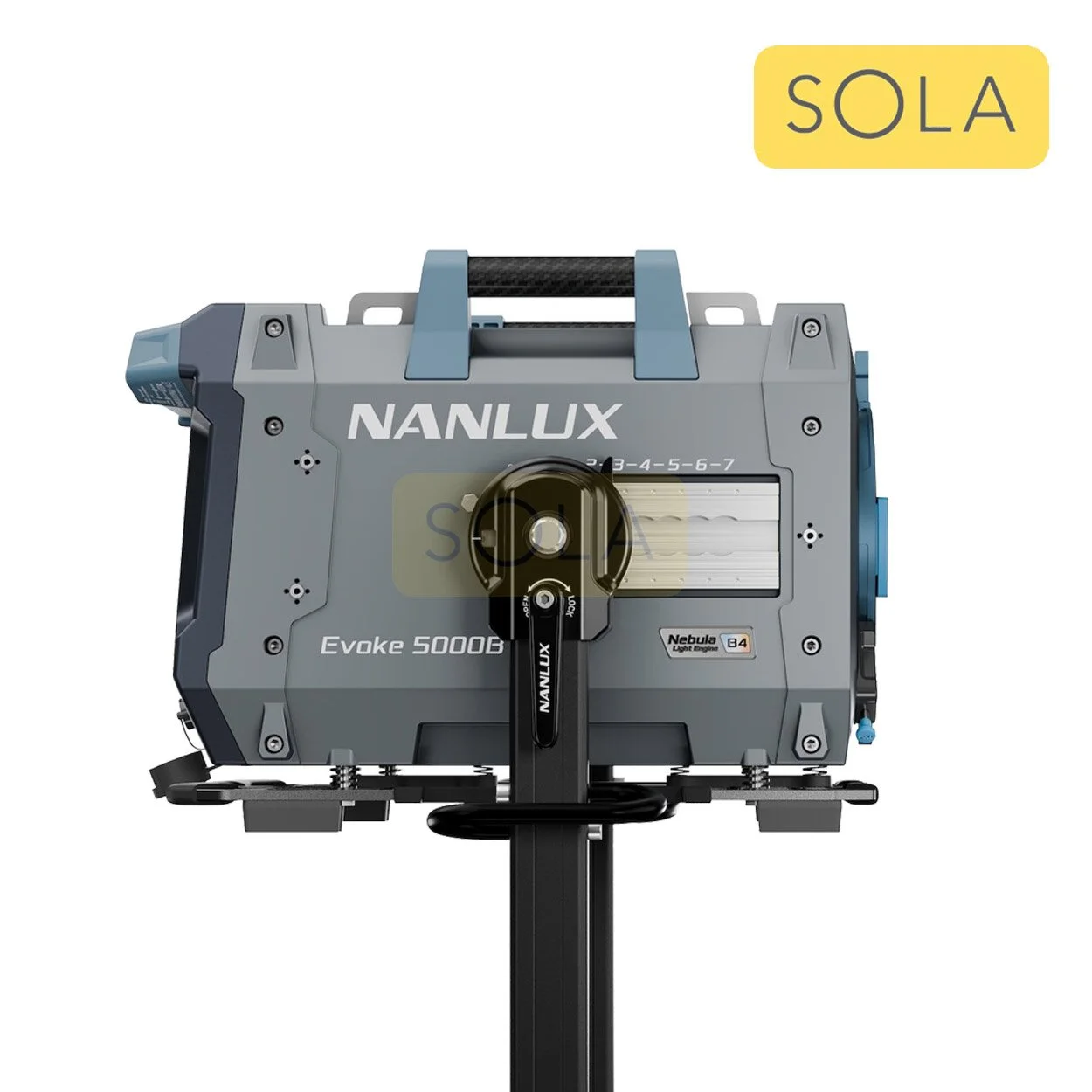

Head Nanlux Evoke 5000B
Included in Base Kit
Nanlux Reflector Set

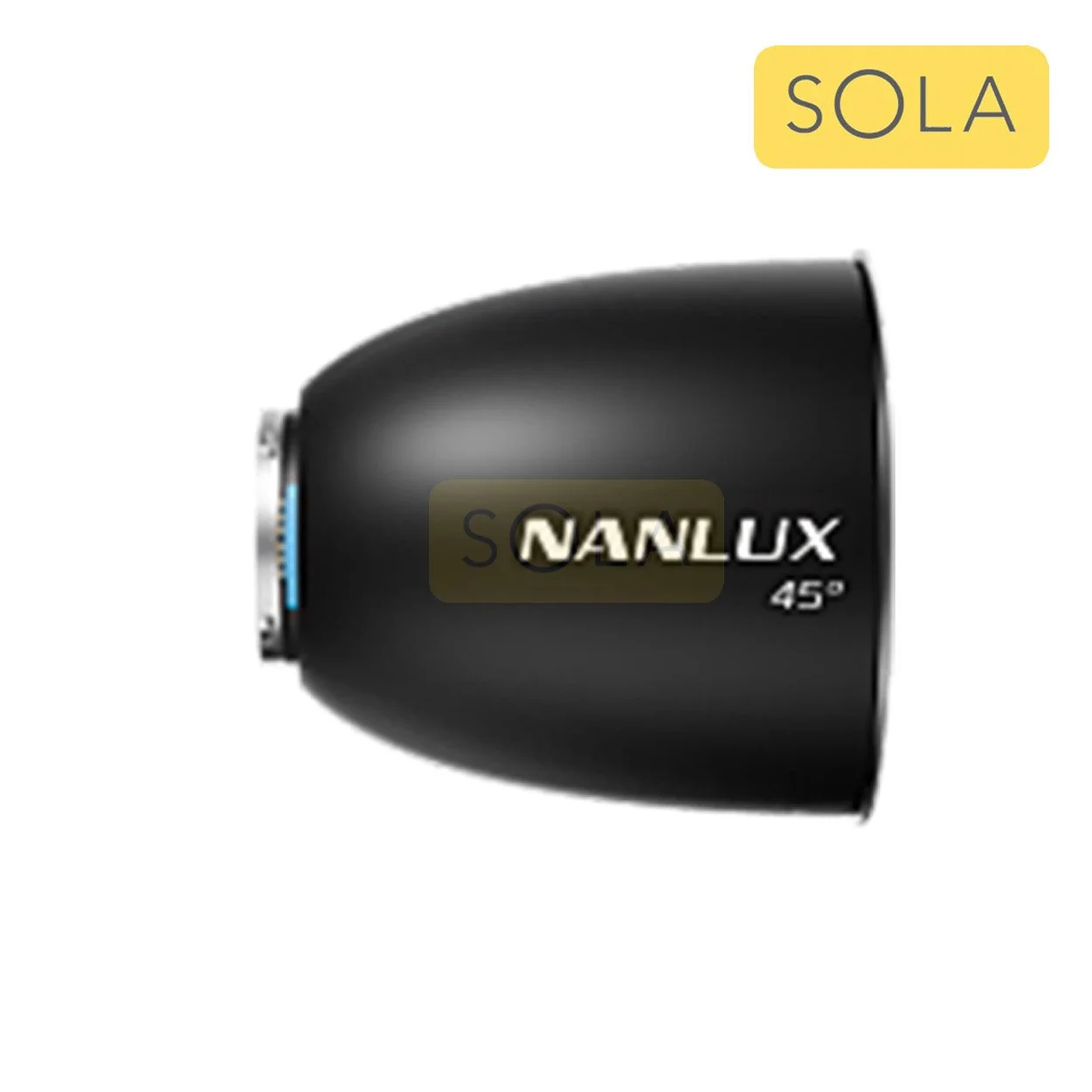

Included in Base Ki. RF-NLM-45-EV2400 Reflector 45°
Power Supply/Ballast
No ballast required - ! Internal in 5000B Head
Control Unit Accessories

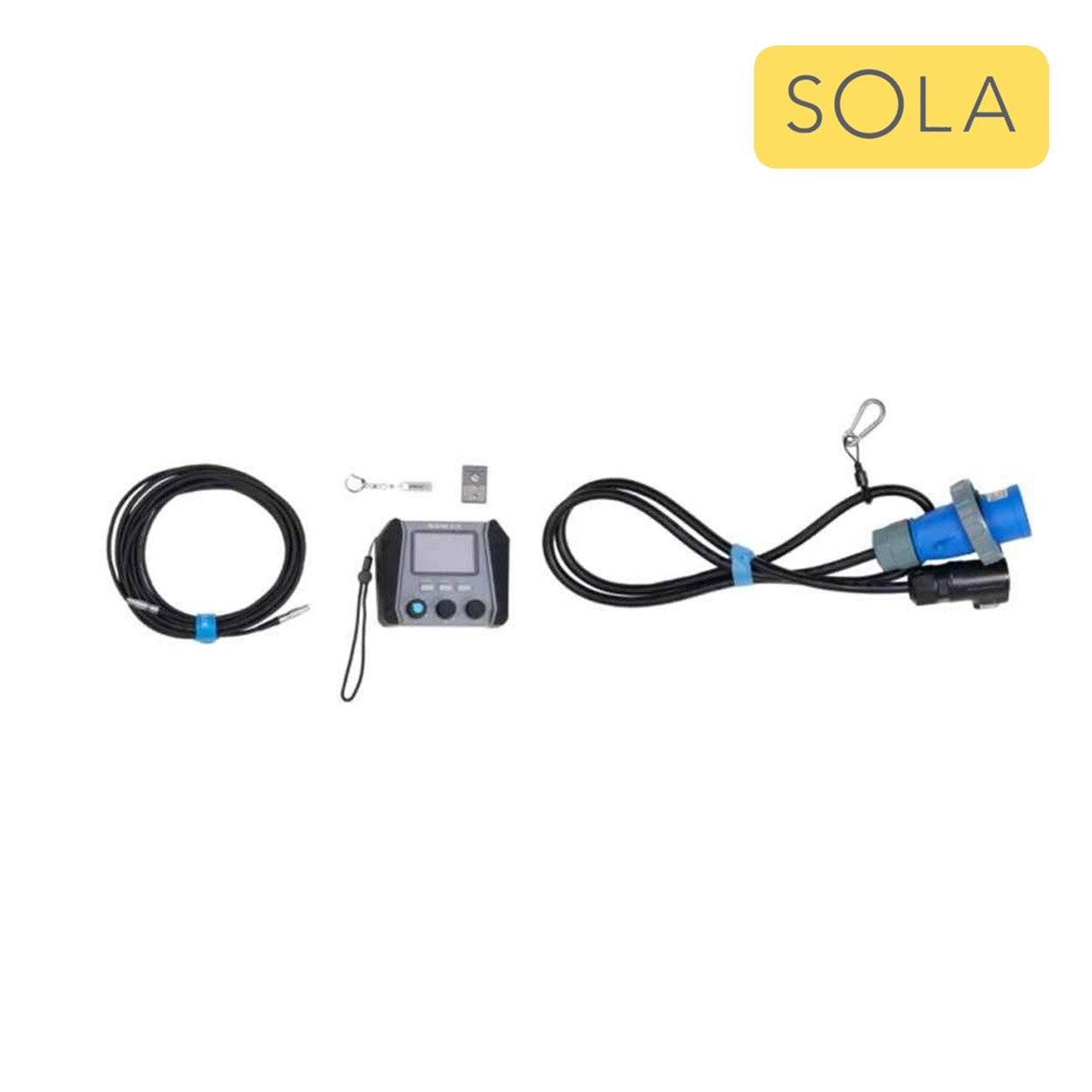

Accessories; Remote controller, 32A power cable 2M , WC-EXT wired controller with cable
Nanlux 5000B Optional Accessories

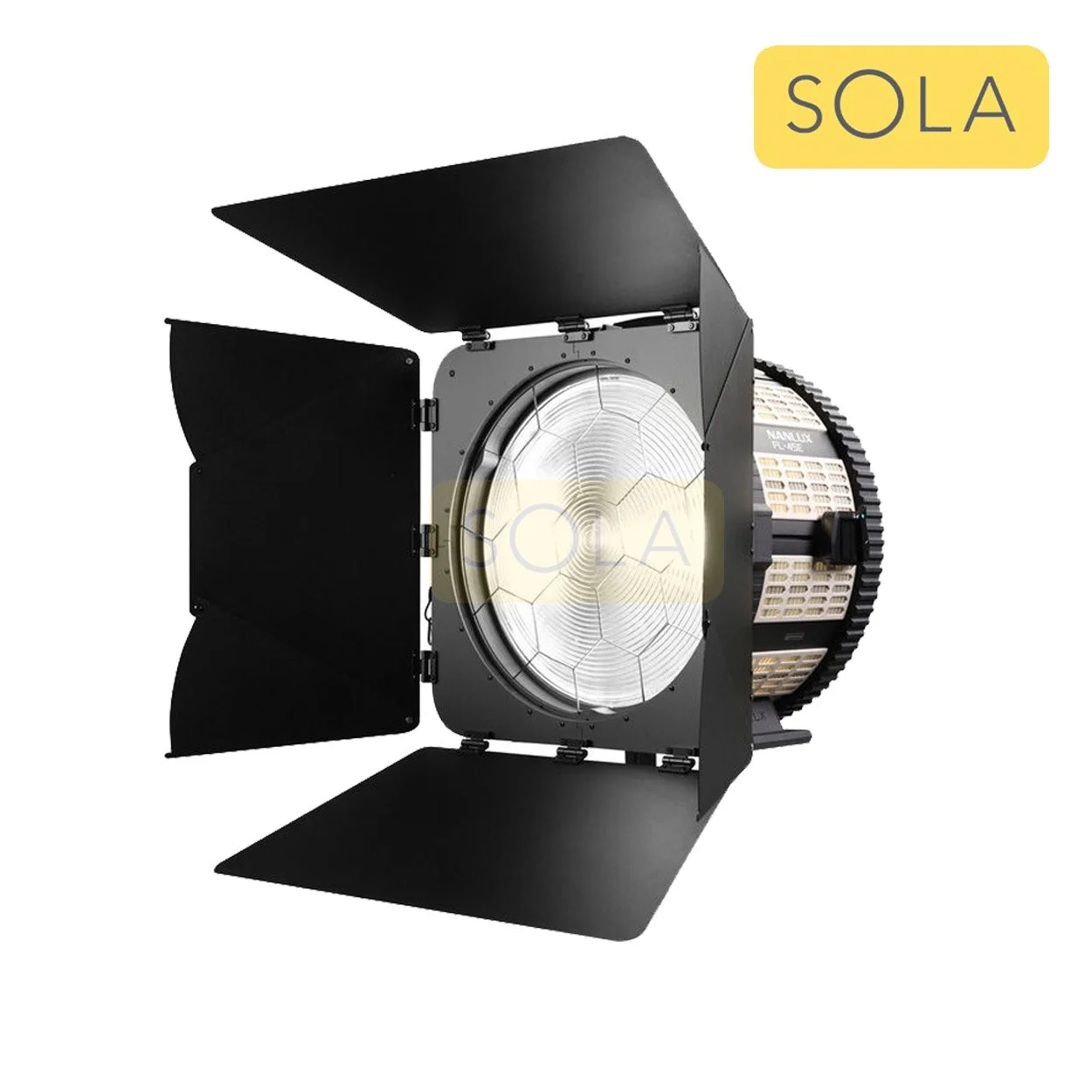

Nanlux 5000B Fresnel. FL-45E
The motorised Fresnel Lens FL-45E is a cutting-edge NL mount optic with remote control and a zoom range from 15° to 46°.
The FL-45E can be controlled either by the button on the lens itself or by wired controller. Also compatible with NANLINK APP or DMX console.
Dimension: 431 × 490 × 330, Weight; 10kg, (Barndoor 2.3kg)
£40 Per day + VAT
Nanlux Square Softbox 100
3’ Square softbox complete with-
Light Diffusion
Full Diffusion
45° Eggcrate
Dimension: 100 x 100 x d56cm, Weight; 2.2kg
£20 Per day + VAT
Nanlux Evoke Lantern Softbox 120
4’ Round Lantern complete with-
Diffusion
Blackout Fabric x2
Dimension: Φ120 x d85cm, Weight; 2.8kg
£25 Per day + VAT
Nanlux Parabolic Softbox 120
4’ Round softbox complete with-
Light Diffusion
Full Diffusion
Eggcrate
Dimension: Φ120 x d80cm, Weight; 4.2kg
£25 Per day + VAT
Nanlux Parabolic Softbox 150
5’ Round softbox complete with-
Light Diffusion
Full Diffusion
Eggcrate
Dimension: Φ150 x d88cm, Weight; 5.5kg
£30 Per day + VAT
Nanlux Softbox OCTA 150
4’ Octagonal softbox complete with-
Light Diffusion
Full Diffusion
Eggcrate
Dimension: Φ150 x d58cm, Weight; 5.5kg
£30 Per day + VAT

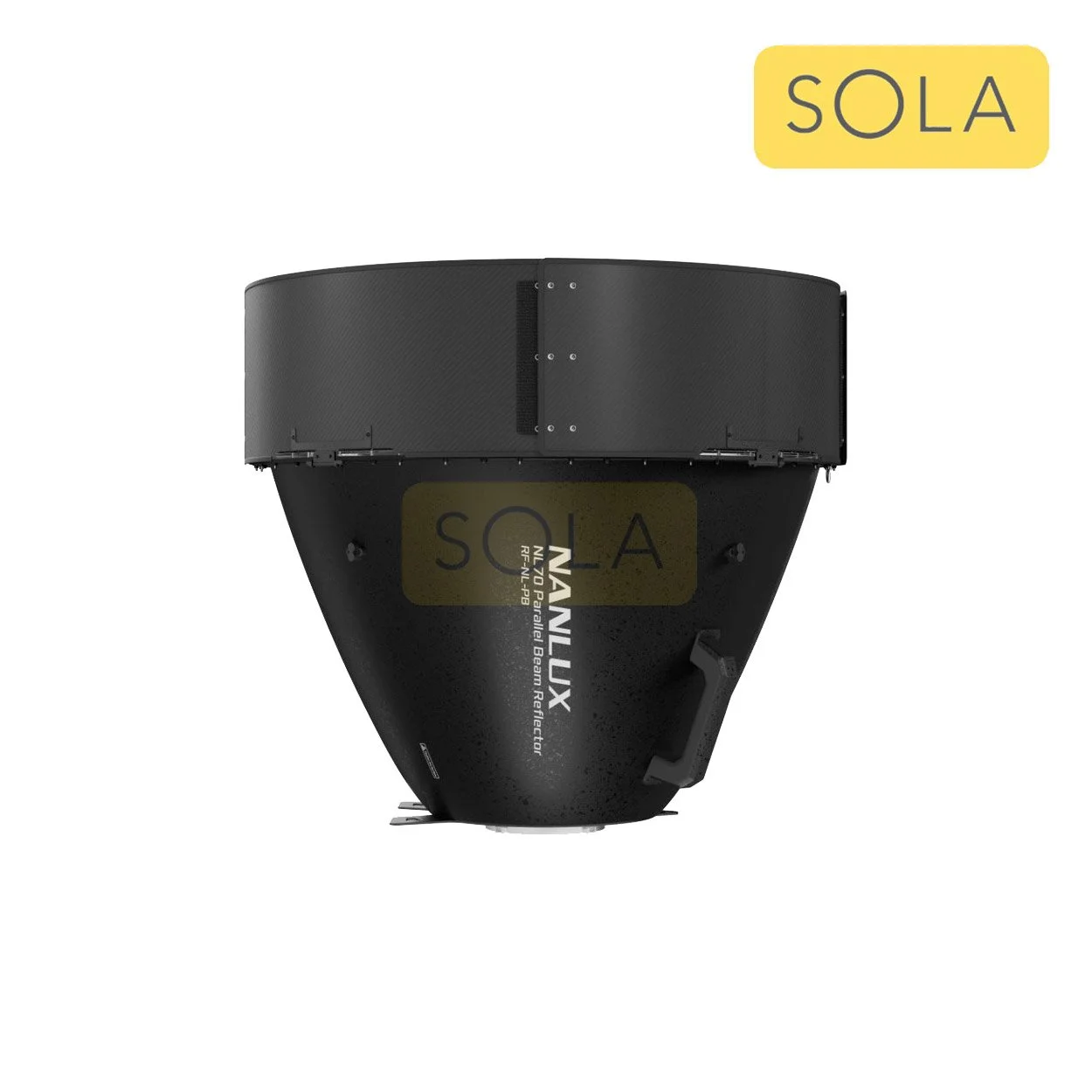

RF-NL-PB
NL70 Parallel Beam Reflector
Beam-6º Parallel
Compatible product 900C/1200/1200B/2400B/5000B
Complete with Snoot
Dimension: Φ78 x d50cm, Weight; 9.37kg
£100 Per day + VAT

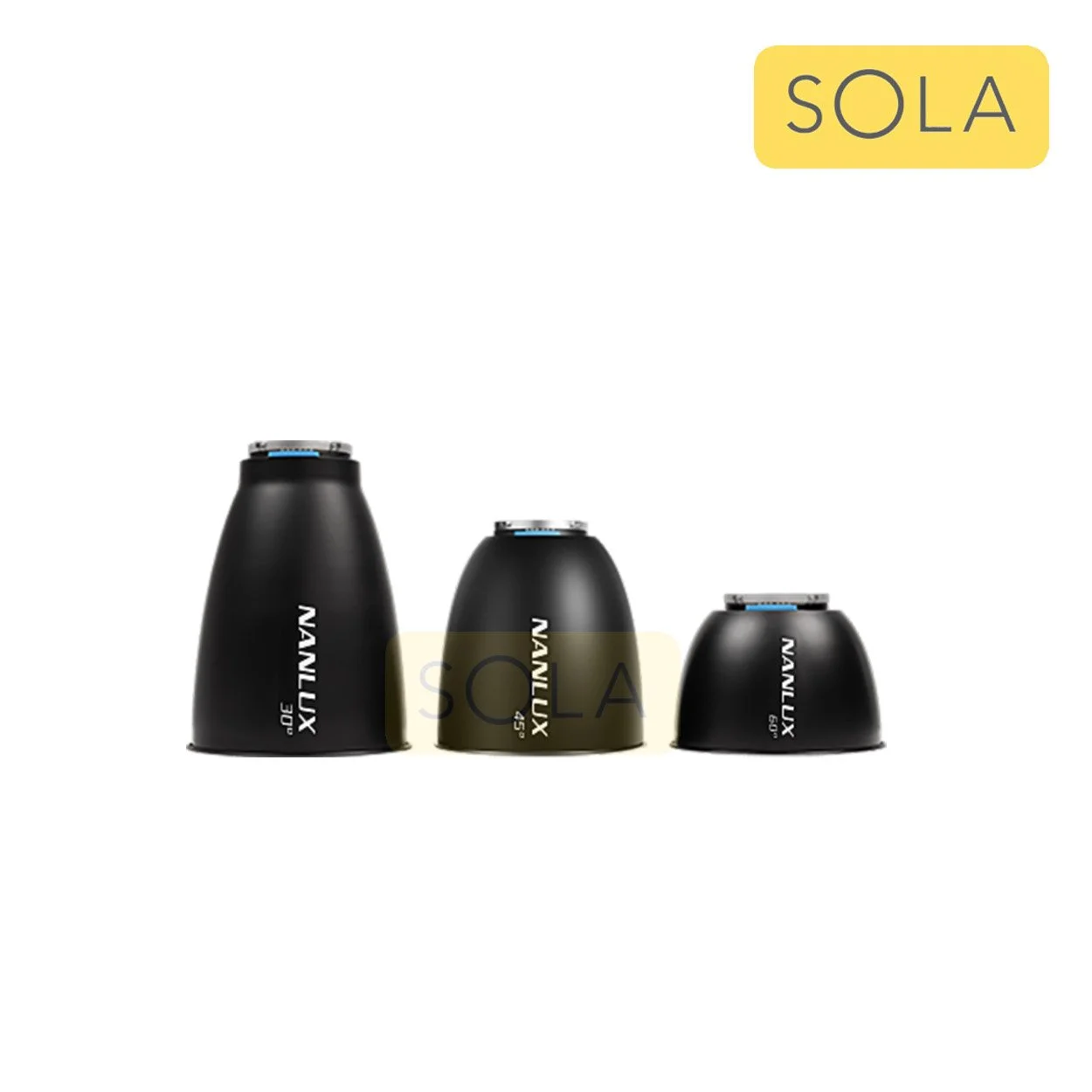

Nanlux Reflector Set - 30º / 45º / 60º
Featuring Nanlux’s proprietary NL mount, the reflectors can install quickly and securely. Built-in electronic contacts allow the fixture to automatically detect the reflector’s beam angle and adjust parameters accordingly, ensuring accurate and stable light output.
£25 Per day + VAT
