The Nanlux Evoke 2400B is the brightest of the LED spot fixtures that we rent at Solalights.
With output equivalent to a 4k HMI or a 10k tungsten, the Evoke will run from a 13amp domestic socket or with a Honda EU6500 generator you can power two.
Working outside on location, the head and ballast are shower proof at IP65, and shooting inside, low heat dissipation makes for comfortable working.
Compact with good ergonomics, the angled stirrup allows the lamp head to be easily tipped down where a steep angle is required.
See below for details of what is included in the base kit and other optional accessories.
Compact design for the Evoke Head and Ballast
Nanlux 2400B Base Kit. £285 Per day + VAT
Head Nanlux Evoke 2400B
Included in Base Kit

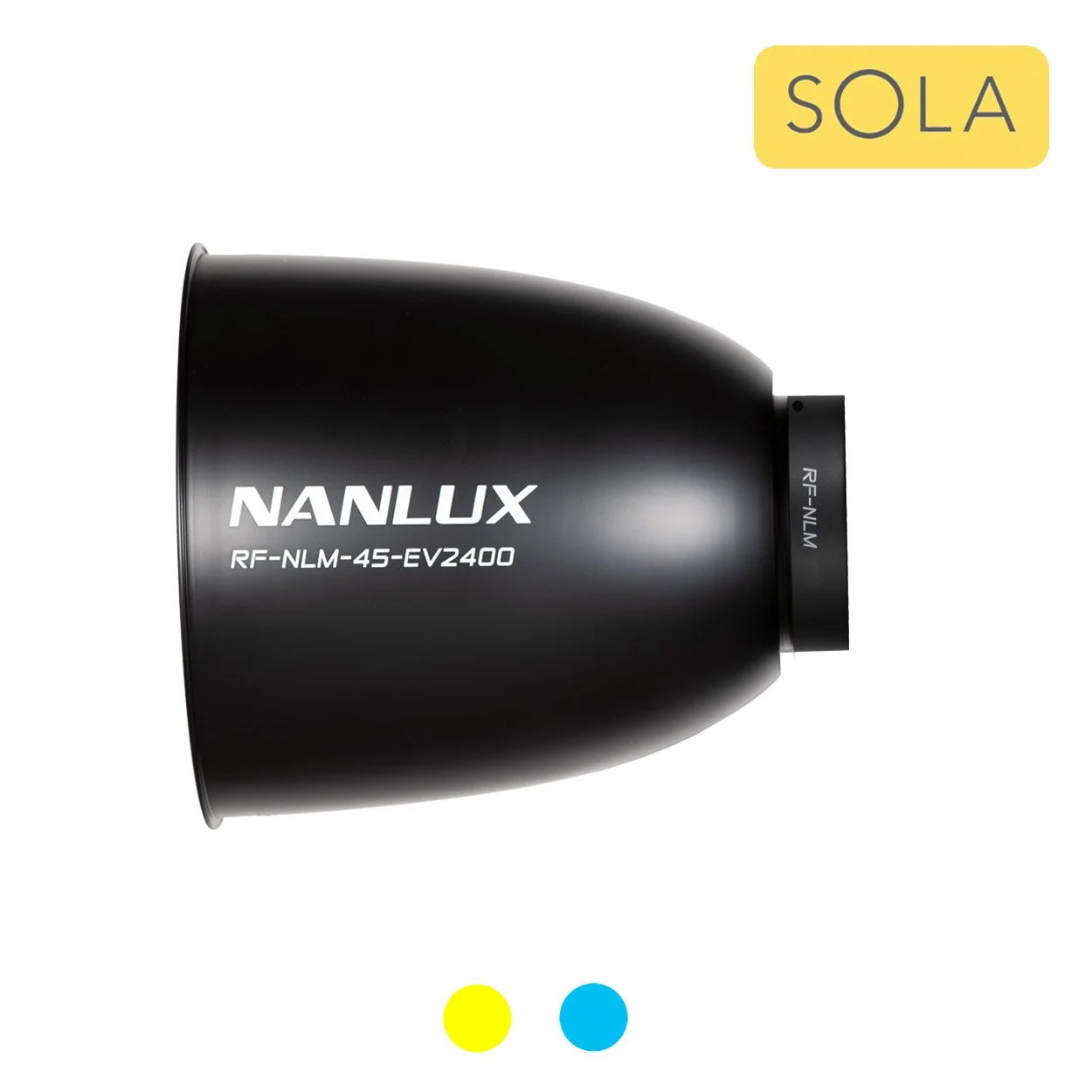

Nanlux Reflectors 45° ONLY
Included in Base Ki. RF-NLM-45-EV2400 Reflector 45°

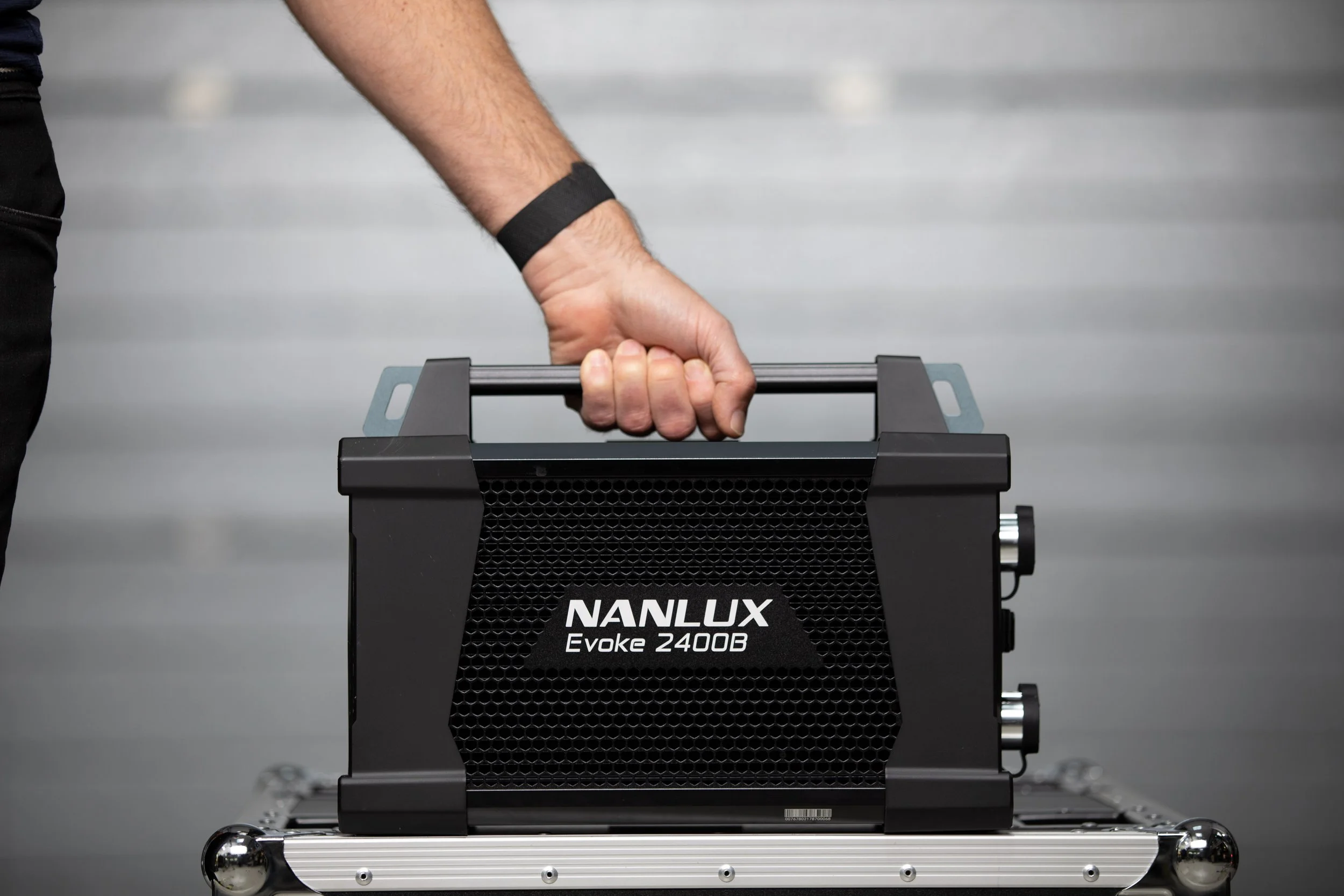

Power Supply/Ballast
Included in Base Kit
Control Unit Accessories
Accessories; Quick Release Clamp, Remote Controller, AC Power Cable 3M, Head Extension 7.5M
Nanlux 2400B Optional Accessories
Nanlux 2400B Fresnel. FL-35E
The motorised Fresnel Lens FL-35E is a cutting-edge NL mount optic with remote control and a zoom range from 15° to 46°.
The FL-35E can be controlled either by the button on the lens itself or by wired controller. Also compatible with NANLINK APP or DMX console.
Dimension: 431 × 490 × 330, Weight; 10kg, (Barndoor 2.3kg)
£40 Per day + VAT
Nanlux Square Softbox 100
3’ Square softbox complete with-
Light Diffusion
Full Diffusion
45° Eggcrate
Dimension: 100 x 100 x d56cm, Weight; 2.2kg
£20 Per day + VAT
Nanlux Evoke Lantern Softbox 120
4’ Round Lantern complete with-
Diffusion
Blackout Fabric x2
Dimension: Φ120 x d85cm, Weight; 2.8kg
£25 Per day + VAT
Nanlux Parabolic Softbox 120
4’ Round softbox complete with-
Light Diffusion
Full Diffusion
Eggcrate
Dimension: Φ120 x d80cm, Weight; 4.2kg
£25 Per day + VAT
Nanlux Parabolic Softbox 150
5’ Round softbox complete with-
Light Diffusion
Full Diffusion
Eggcrate
Dimension: Φ150 x d88cm, Weight; 5.5kg
£30 Per day + VAT
Nanlux Softbox OCTA 150
4’ Octagonal softbox complete with-
Light Diffusion
Full Diffusion
Eggcrate
Dimension: Φ150 x d58cm, Weight; 5.5kg
£30 Per day + VAT
NANLUX Evoke 2400B LED Bi-Colour Spot Specifications
Lamp Colour
Colour CCT; 2700-6500K
G/M ±80
CRI ≥96.
TLCI ≥97
TM-30 (Average) 95
Lamp Misc
Beam Angle Raw (No Accessories) 100°
Beam Angle Reflector (Narrow) 15°
Beam Angle Reflector (Medium) 30°
Beam AngleReflector (Wide) 45°
Est. Max Flicker-Free;
Cooling Method; Active Cooling
Operating Temperature; -20°C ~ 45°C / -4°F ~ 113°F
Dimming 0-100%;
Accessory Mount; NL Mount
Mounting; 28mm / 1.125in (Junior Pin)
Rating; IP55
Power
Max Power Output ≤24,00W
Max Power Consumption TBC
Max Operating Current TBC
Operating Voltage (Power Supply) 100V~240V, 50Hz/60Hz
Max Head Cable Length TBC
Connectivity
On-board control: Evoke 2400B can be operated through the control panel on the fixture.
Bluetooth: Evoke 2400B has built-in bluetooth module for directly controlled by NANLINK APP.
2.4G: Evoke 2400B has built-in 2.4G receiver, enabling it to be controlled by remote controller or by NANLINK APP via the NANLINK box.
DMX/RDM: Support DMX/RDM control.
LumenRadio: Built-in Lumenradio module for remote control.
Wireless control on/off function.
Reserved wired control function.
Support Art-Net and sACN control protocol.
Function/Operation
1. CCT: 2700K-6500K, fully dimmable 0-100% in 0.1% increment, G/M ±80
2. EFFECT: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding.
3. Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF.
The maximum output is 100% when the fan is in SMART or FULL SPEED state.
The maximum output is 50% when the fan is in LOW SPEED state.
The maximum output is 10% when the fan is OFF.
4. Two output modes: MAX OUTPUT and CONSTANT OUTPUT.
5. Accessory recognition function: Evoke 2400B has accessory recognition function, for recognizing accessories that with optical contacts, this function can be turn on/off on the menu.
6. Two language options: English and Chinese.
7. Support firmware update.
8. Bluetooth reset function.
Weight
Lamp Head w/ Yoke 17kg / 38lbs
Control Box/Ballast 11.6kg / 25.5lbs
Dimensions
Lamp Head w/ Yoke 43 × 32 × 27cm
Control Box/Ballast 39 × 18 × 27cm
