A big step forward from the ubiquitous 1st generation Arri Sky Panel.
New features include IP66 harsh weather protection, a HyperOptic lens, double the CCT range (1,500 K - 20,000 K), an internal ballast and a yoke for grouping 3 heads into a single fixture.
The drop-in HyperOptic lens makes the X21 a directional source, focusing the light into a punchy oval beam with a single shadow.
Swapping the HyperOptic for the X21 Dome, the SkyPanel is softened and can be further modified with a DOP Choice soft box, eggcrate and snoot.
Weather proofing and the integration of the ballast are welcome features which make the equipment safer and more practical for outdoor use.
SKY PANEL X IN THREE-LIGHT CONFIGURATION X23. (X21 is a single unit and X22 is a two-light rig)
X23 Modular Frame
The X23 Modular Frame is a system that allows the mounting of three X21 fixtures in an array. The system includes aluminum profiles with integrated daisy chain cabling for Ethernet and power, yoke adapters, large stainless-steel handles, high strength tilt locks and robust tilt lock levers. Each frame includes three Quick-Lock Brackets that are optimized for use with HyPer Optics and X21 Domes, and the distance between brackets can be adjusted for use with S60 Adapters. The product also includes an angle indicator close to the side lever and two truss pins that hold the frames in place when mounted onto the X Modular Yoke. The Modular Frame can be inserted in the X Modular Yoke for a seamless stirrup format.
Use with X Modular Yoke
Quick-lock system and toolless installation
Two high-strength tilt locks
includes two daisy chain cables for power, and two for Ethernet, and two truss pins
Weight: approx. 5,6 kg / 12.3 lb
Arri Sky Panel X21 Base Kit. £205 Per day + VAT.
Head Sky Panel X21
X21 Sky Panel Head complete with-
Yoke/Spigot
All Weather Control Panel
Power Cable (16A > Powercon)
Dimension: 74 x 34 x 15.5cm, Weight; 18kg

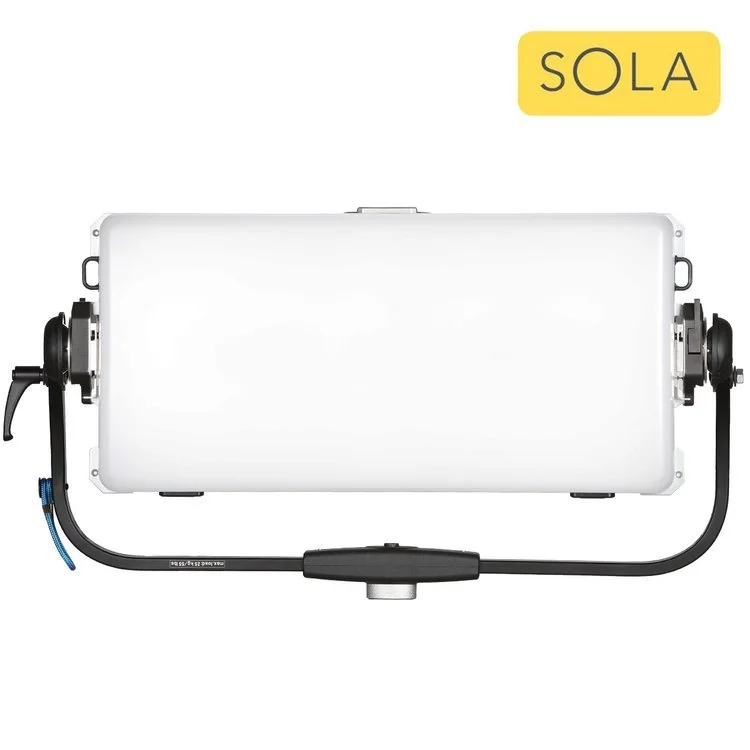

Soft Dome Sky Panel X21
Clip-on diffuser for uniform soft light.
Dimension: 71 x 7 x 32.5cm, Weight; 18kg

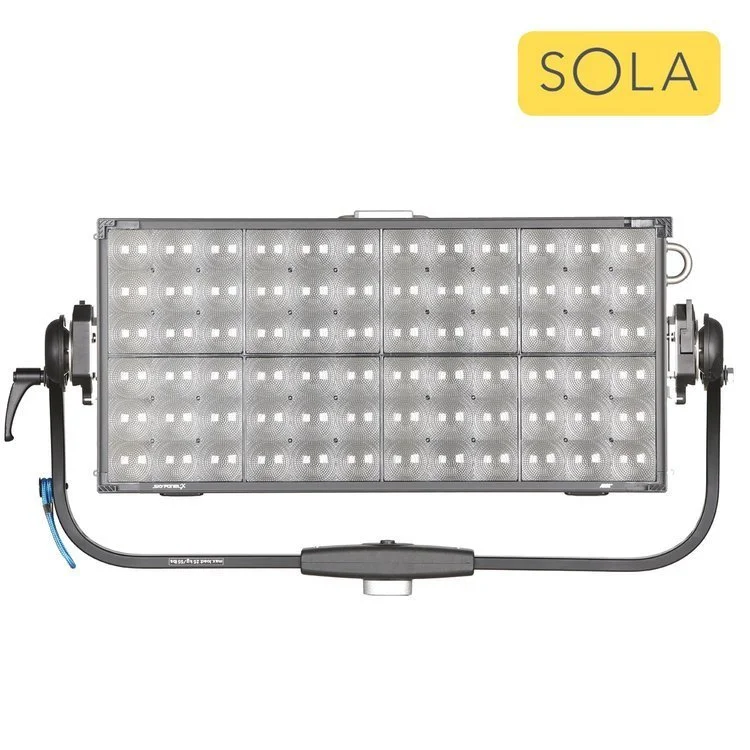

Hyper Optic Sky Panel X21
Spot lens attachment. 72 individual lenses collimated into a single oval beam.
Dimension: 71 x 10.5 x 32cm, Weight; 4.8kg

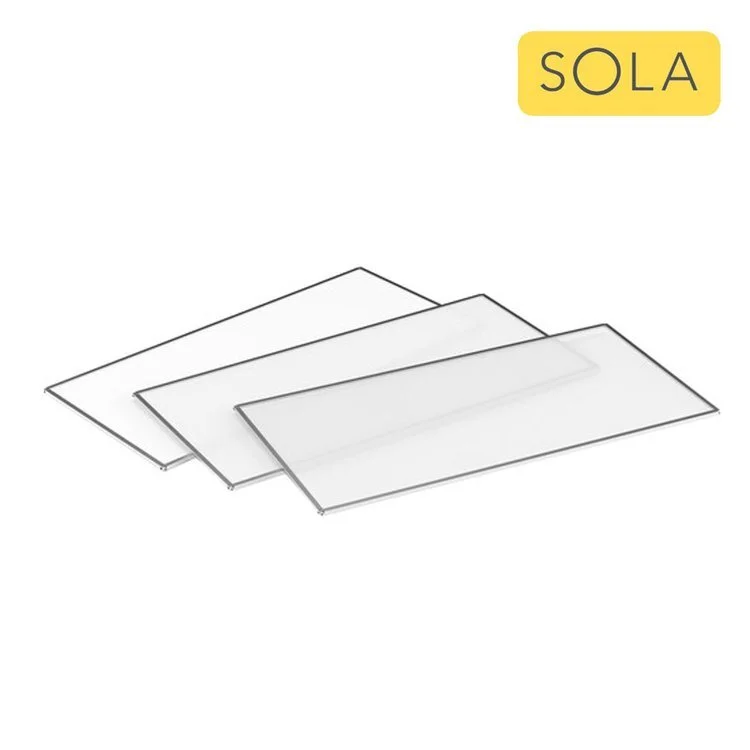

Beam Enhancer Sky Panel X21
Light density diffusion panel to soften Hyper Optic.
Arri Sky Panel X Optional Accessories

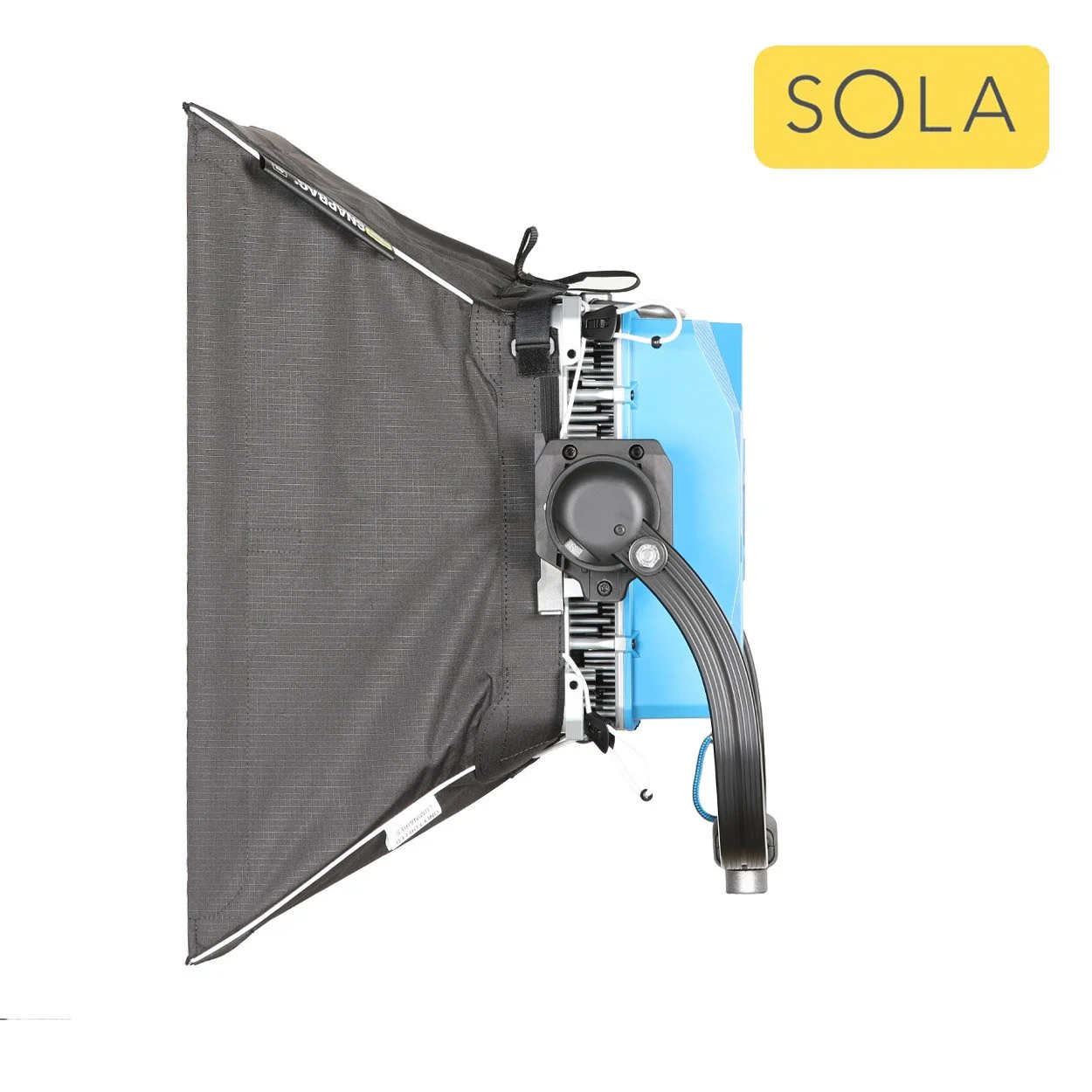

DOP Choice SnapBag. Sky Panel X21
Softbox complete with-
Half Diffusion
Magic Cloth
Eggcrate 40º (SnapGrid)
Dimension: 90 x 62 x 29cm, Weight; 1kg
£40 Per day + VAT
DOP Choice SnapBox Snoot. Sky Panel X21
Foldable snoot attaches directly to head. Can be used with Dome and HyperOptic.
Dimension: 68cm x 34cm x 19cm
£10 Per day + VAT
DOP Choice SnapGrid Eggcrate. Sky Panel X21
Foldable 30º eggcrate attaches directly to head. Can be used with Dome and HyperOptic.
Dimension:, 69cm x 34cm x 14cm
£20 Per day + VAT
S60 > Sky Panel X21 Adapter
Adapter for fitting version-1 SkyPanel accessories to SkyPanel X.
Dimension: 71 x 95 x 35cm, Weight; 2kg
£10 Per day + VAT
X23 Modular Frame. Sky Panel X23
X23 Modular Frame complete with-
x2 daisy chain cables for power
x 2 for Ethernet
x2 Truss Pins
POA
-
Arri SkyPanel X21 LED Colour Specifications
Lamp Colour
LED engine. Full Spectrum, 6-colour RGBACL LED
CRI 90 min. / 99 max. (High CRI VariFan mode)
TLCI 93 typical (High CRI VariFan mode)
Camera sensor matching. Yes, via ARRI ALEXA Mode
Colour modes CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
CCT
Light
Power 800W
Open Face
Hard (HyPer Optic),
Soft (X21 Dome or S60 Adapter)
Format size 2 : 1 (horizontal)
Light engines x4
Pixel zones x8

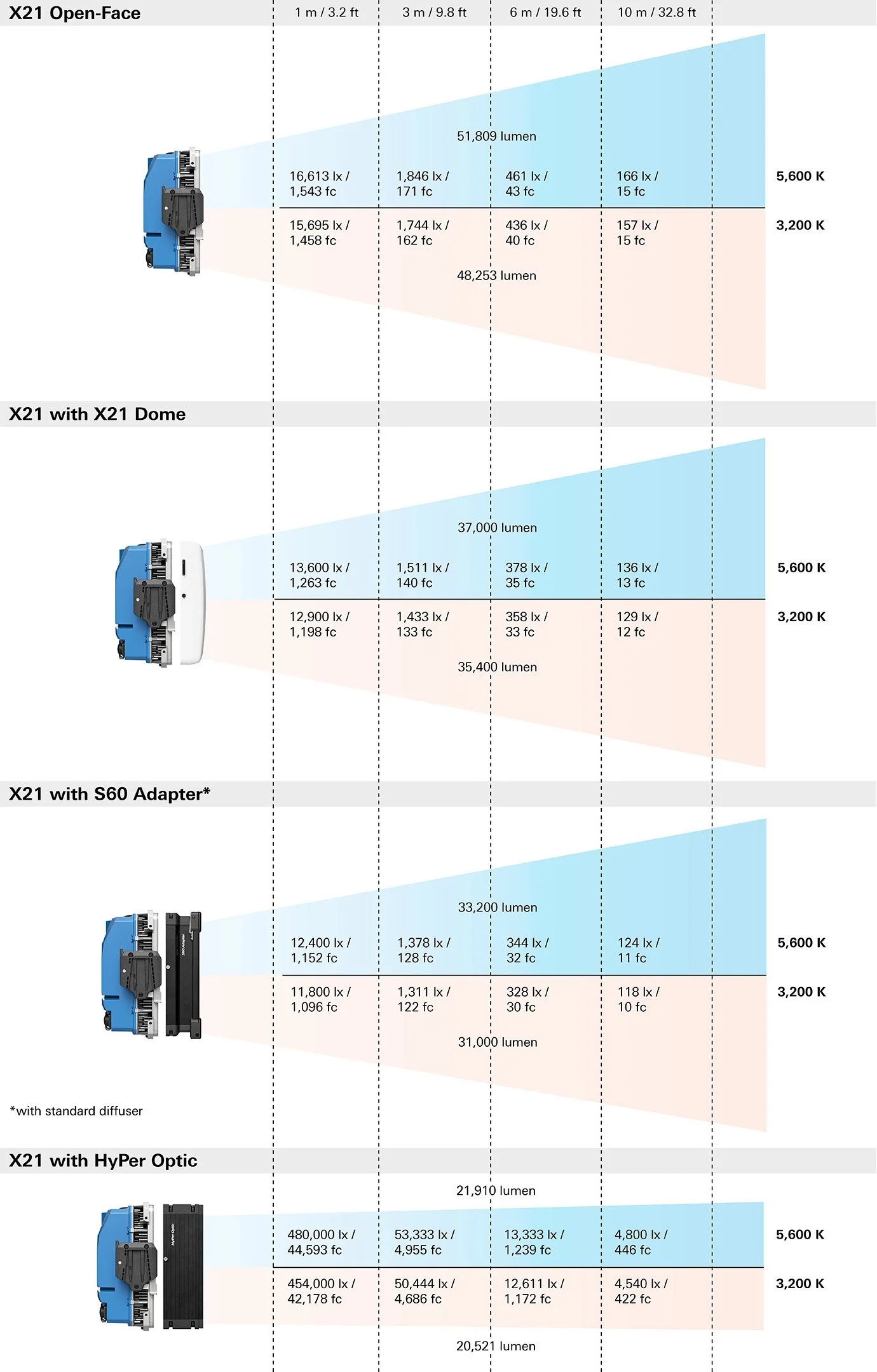

Max. output (lux) 4,800 Lux @ 10 m, 5,600 K (native hard)
Max. output (lumen) 51,809 Lumen (native open-face)
Power/Cooling/IP-Rating
Power 800 W
PSU Integrated
AC voltage 100 - 240 V~, 50/60Hz
Operational modes. Standard (low noise), High Output, VariFan, ARRI ALEXA
Cooling system. Passive + Active cooling system with double heat sink
Maximum ambient temperature 40ºC
IP-rating IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)
Connectivity
Connectors
2 x AC (In and through), max. 20 A, TRUE1 TOP
1 x DC (In) 48 V for battery use
2 x DMX (In and Out), XLR-5pin
2 x LAN / Ethernet, RJ45, EtherCON compatible
1 x USB type C
1 x LEMO for ALL-WEATHER
Control Panel
Type of display. Removable ALL-WEATHER Control Panel with LiOS3
DMX preset. Yes, via Control Panel, RDM and DMX-512A
Legacy DMX modes. Compatible with S60-C mode 2 and 6
Multi-array setup. Yes (up to 3 units in just one single DMX profile)
High-speed mode. Yes.
Integrated wired control. DMX-512A, RDM, Art-Net 4, sACN
LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
Integrated wireless control CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
Daisy-chain modularity. Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
Pre-programmed effects. 15 Pixel Macros, 15 effects
Weight
Weight - fixture only 15 kg / 33 lb
Weight - with yoke 18 kg / 39.7 lb
Dimensions
Dimensions fixture only 738 x 339 x 154 mm
