EVEN MORE OUTPUT

With the Fresnel 2X the LS C300d Mark II can produce up to 90,000 lux, approaching the luminance of a 575W HMI.

We also stock speed-rings for Profoto and Chimera soft boxes. See compatible light shaping tools below.



Aputure LS C300D MkII Base Kit. £65 Per day + VAT

Head Aputure LS C300D

Included in Base Kit

Hyper Reflectors Narrow/Medium/Wide

Included in Base Kit

Light Control Unit

Included in Base Kit

Control Unit Accessories

Included in Base Kit




Aputure LS C300D MkII Optional Accessories

Aputure F10 Barn Doors

Barn doors to attach directly to Head.

Dimension: 254 x 187 x 160MM

£20 Per day + VAT

Aputure Light Dome 150

5’ Octa softbox complete with 1.5 and 2.5 stop diffusions and 45° egg crate.

Dimension: Φ150cm x 80cm, Weight; 3.2kg

£30 Per day + VAT

Aputure Light Dome MKII

3’ Octa softbox complete with outer and inner diffusions and 45° egg crate.

Dimension: Φ89cm x 65cm, Weight; 2.55kg

£25 Per day + VAT

Aputure Light Dome Mini MKII

1.8’ Octa softbox complete with outer and inner diffusions and 45° egg crate.

Dimension: Φ55cm x 29cm, Weight; 1.64kg

£10 Per day + VAT


Aputure Octa Dome 120

4’ Octagonal softbox complete with-
Half Diffusion
Full Diffusion
45° Eggcrate

Dimension: Φ120cm x 53cm, Weight; 1.7kg

£25 Per day + VAT

Aputure Lantern

2.7ft Chinese Lantern. Kit includes fabric skirt, which in shown in the Lantern 90 image.

Dimension: Φ83.5cm x Depth; 18.5cm, Weight; 1.3kg

£20 Per day + VAT

Aputure Lantern 90

3ft Chinese Lantern. Kit includes 360° fabric skirt which  hangs down in 4 sections approximately 25cm below diffusion. Picture above with only one section dropped.

Dimension: Φ90cm x Depth; 18.5cm, Weight; 1.3kg

£20 Per day + VAT

Aputure Space Light

Space Light with detachable 1/2 black skirt.

Dimension: Φ45cm x Height; 72cm, Weight; 1.3kg

£15 Per day + VAT


Aputure F10 Fresnel

10” Fresnel Lens with focus from 15 to 45°

Note; The smaller 2x Fresnel below is a more popular option for the 300 series.

Dimension: Φ45cm x Depth; 25cm (without door), Weight; 1.3kg

Fresnel W/Barndoors- £40 Per day + VAT

Aputure Spotlight Mount Set - 19°

Profile Spotlight 19°. Optional Accessories-
18-Leaf Iris
Gobo Holder
Gobo Kit x3

Dimension: 44 x 19 x 38cm, Weight; 4.6kg. Mounting: 16/28MM

Fresnel- £35 Per day + VAT
Accessories- £5 Per day + VAT

Aputure Spotlight Mount Set - 26°

Profile Spotlight 26°. Optional Accessories-
18-Leaf Iris
Gobo Holder
Gobo Kit x3

Dimension: 44 x 19 x 38cm, Weight; 5kg. Mounting: 16/28MM

Fresnel- £35 Per day + VAT
Accessories- £5 Per day + VAT

Aputure Spotlight Mount Set - 36°

Profile Spotlight 36°. Optional Accessories-
18-Leaf Iris
Gobo Holder
Gobo Kit x3

Dimension: 44 x 19 x 38cm, Weight; 5.1kg. Mounting: 16/28MM

Fresnel- £35 Per day + VAT
Accessories- £5 Per day + VAT


Aputure Fresnel 2x

2x Fresnel Lens

Dimension: Φ18cm x Depth; 14cm , Weight; 1.3kg

2xFresnel W/Barndoors- £40 Per day + VAT

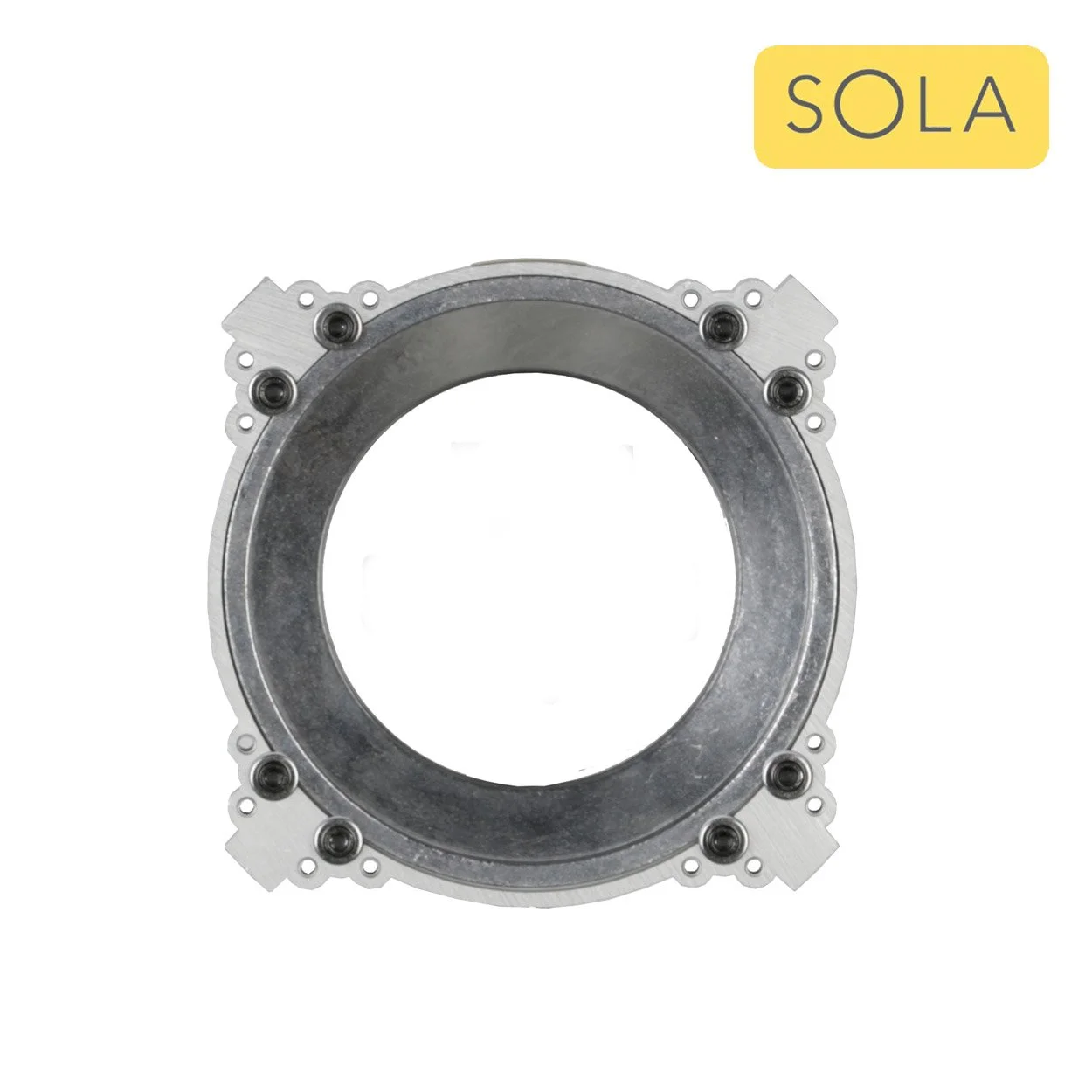

Speed Ring for Profoto Soft Boxes

For use with any Profoto HR (heat resistant) soft box.

£12- Per day + VAT

Speed Ring for Chimera Soft Boxes

For use with Chimera Video Pro Plus extra small or small soft box.

£12- Per day + VAT





LS C300D II Specification

LS C300D II

Color Temperature 5600K±200K

CRI ≥96

TCLI ≥96

CQS ≥95

Operating current 3.5A

Power Consumption 350W maximum

Power Supply AC100~240V 50/60Hz

Cooling mode Active cooling

Radio Frequency 2.4GHz

Remote Ability 100m

Battery requirement 14.4V/14.8V ≥15A (12V-16.8V)

APP Control Type Bluetooth

Accessory Mount Bowens Mount

WEIGHT


Lamp Head with Yoke 11.4kg / 25.104lbs

Control Box 5.80kg / 12.79lbs

Lightning Clamp 670g / 1.48lbs

DIMENSIONS


Lamp Head 29.84 x 21.56 x 34.45cm / 11.75 x 8.49 x 13.56in

Controller box(Anton Bauer Battery) 27.86 x 12.67 x 8.73cm / 10.97 x 4.99 x 3.44in

Controller box(V-Mount) 27.86 x 12.67 x 9.67cm / 10.97 x 4.99 x 3.81in

Lightning Clamp 10.35 x 8.74 x 12.5cm / 4.07 x 3.44 x 4.92in

Carrying Case 60.96 x 26.67 x 22.1cm / 24 x 10.5 x 8.7in

PHOTOMETRICS


Distance 1m 3m 5m

Bare Bulb 11,000 lux 1,300 lux 550 lux

Bare Bulb 1,022 fc 121 fc 51 fc

Hyper Reflector 45,000 lux 3,500 lux 1,200 lux

Hyper Reflector 4182 fc 325 fc 112 fc

Fresnel 2X (Flood) 38,000 lux 5,000 lux 1,900 lux

Fresnel 2X (Flood) 3,530 fc 465 fc 177 fc

Fresnel 2X (Spot) 80,000 lux 9,500 lux 3,500 lux

Fresnel 2X (Spot) 7432 fc 883 fc 325 fc
