UNIVERSAL BOWENS MOUNT
The LS 600d also features an integrated Bowens Mount for easily attaching accessories and modifiers.
We also stock speed-rings for Profoto and Chimera soft boxes. See compatible light shaping tools below.

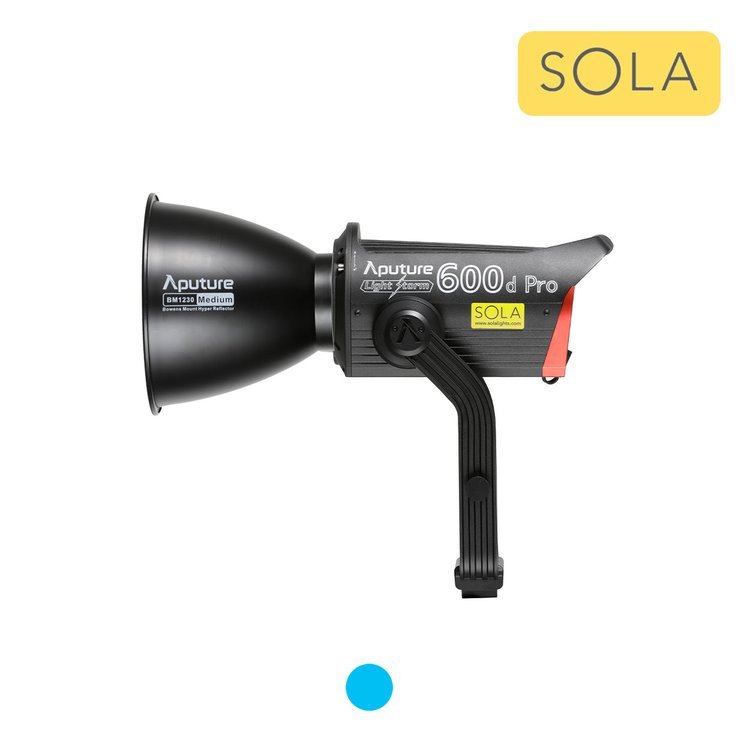

Aputure 600D and Light dome 150 Reflector
Aputure 600d Pro Base Kit. £85 Per day + VAT
Head Aputure 600D
Included in Base Kit
Hyper Reflectors Narrow/Medium/Wide
Included in Base Kit
Light Control Unit
Included in Base Kit
Control Unit Accessories
Included in Base Kit
Aputure 600d Pro Optional Accessories
Aputure F10 Barn Doors
Barn Doors to attach directly to Head.
Dimension: 254 x 187 x 160MM
£12 Per day + VAT
Aputure Light Dome 150
5’ Octa softbox complete with 1.5 and 2.5 stop diffusions and 45° egg crate.
Dimension: Φ150cm x 80cm, Weight; 3.2kg
£30 Per day + VAT
Aputure Light Dome MKII
3’ Octa softbox complete with outer and inner diffusions and 45° egg crate.
Dimension: Φ89cm x 65cm, Weight; 2.55kg
£25 Per day + VAT
Aputure Light Dome Mini MKII
1.8’ Octa softbox complete with outer and inner diffusions and 45° egg crate.
Dimension: Φ55cm x 29cm, Weight; 1.64kg
£10 Per day + VAT
Aputure Octa Dome 120
4’ Octagonal softbox complete with-
Half Diffusion
Full Diffusion
45° Eggcrate
Dimension: Φ120cm x 53cm, Weight; 1.7kg
£25 Per day + VAT
Aputure Lantern
2.7ft Chinese Lantern. Kit includes fabric skirt, which in shown in the Lantern 90 image.
Dimension: Φ83.5cm x Depth; 18.5cm, Weight; 1.3kg
£20 Per day + VAT
Aputure Lantern 90
3ft Chinese Lantern. Kit includes 360° fabric skirt which hangs down in 4 sections approximately 25cm below diffusion. Picture above with only one section dropped.
Dimension: Φ90cm x Depth; 18.5cm, Weight; 1.3kg
£20 Per day + VAT
Aputure Space Light
Space Light with detachable 1/2 skirt.
Dimension: Φ45cm x Height; 72cm, Weight; 1.3kg
£15 Per day + VAT
Aputure F10 Fresnel
10” Fresnel Lens with focus from 15 to 45°
Dimension: Φ45cm x Depth; 25cm (without door), Weight; 1.3kg
Fresnel- £20 Per day + VAT
Barndoors- £40 Per day + VAT
Aputure Spotlight Mount Set - 19°
Profile Spotlight 19°. Optional Accessories-
18-Leaf Iris
Gobo Holder
Gobo Kit x3
Dimension: 44 x 19 x 38cm, Weight; 4.6kg. Mounting: 16/28MM
Fresnel- £35 Per day + VAT
Accessories- £5 Per day + VAT
Aputure Spotlight Mount Set - 26°
Profile Spotlight 26°. Optional Accessories-
18-Leaf Iris
Gobo Holder
Gobo Kit x3
Dimension: 44 x 19 x 38cm, Weight; 5kg. Mounting: 16/28MM
Fresnel- £35 Per day + VAT
Accessories- £5 Per day + VAT
Aputure Spotlight Mount Set - 36°
Profile Spotlight 36°. Optional Accessories-
18-Leaf Iris
Gobo Holder
Gobo Kit x3
Dimension: 44 x 19 x 38cm, Weight; 5.1kg. Mounting: 16/28MM
Fresnel- £35 Per day + VAT
Accessories- £5 Per day + VAT
Speed Ring for Profoto Soft Boxes
Speed Ring for Chimera Soft Boxes
LS600D Specification
CCT 5600K±200K
CRI ≥96
TLCI ≥96
CQS ≥94
SSI (D56) ≥72
TM-30 RF (Average) 92
TM-30 RG (Average) 102
Beam Angle (No Accessories) 105°
Beam Angle (LS 600 Series Hyper Reflector) 55°
Beam Angle (F10 Fresnel) 15° ~ 45°
Lumens 62,187lm
Max Power Output ≤600W
Max Power Consumption ≤720W
Max Operating Current 8A Max
Operating Voltage (Power Supply) 100V~240V, 50Hz/60Hz
Operating Voltage (Battery): V-Mount / Gold Mount (Two Batteries) | Half Output 12.5V-16.8V (14.4/15A) 22V-33.6V (26V/8.5A, 28.8V/7.5A)
Operating Voltage (Battery): 3-Pin XLR (48V DC) | Full Output 48V/15A
DC Input 1x 48V 3-Pin XLR DC Input (720W)
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Dimming 0-100%; Linear, Exponential, Logarithmic, S-Curve
Control Methods On-board, 2.4GHz, Sidus Link (Sidus Mesh™), 5-Pin XLR DMX512 In & Out
Wireless Operating Range (Bluetooth) ≤80m
Wireless Operating Range (2.4GHz) ≤100m
Screen Type OLED
Firmware Upgradeable USB (FAT16/FAT32), Sidus Link
Cooling Method Active Cooling
Cable Type (Head Cable) LS 600 Series 5-Pin Weatherproof Head Cable (3m)
Cable Type (Max Head Cable Length) 7.5m
Cable Type (Power Cable) Neutrik® powerCON TRUE1 TOP AC Cable (6m)
Construction Material Magnesium Alloy
Accessory Mount Bowens Mount
Tilt Angle 360°
Mounting 16mm / 28mm | 5/8in (Baby Pin) / 1.125in (Junior Pin)
Carrying Case Telescoping Handle, Wheels
Estimated LED Lifetime (L70) 50,000H
Est. Color Shift Over Lifetime (CCT) 2% (6,000H)
Est. Max Flicker-Free FPS 2,000 FPS
Certifications CE, FCC, ROHS, KC, NCC, PSE, BIS
DIMENSIONS
Lamp Head w/o Yoke 30.8 x 15.61 x 15.01cm / 12.13 x 6.15 x 5.91in
Lamp Head w/ Yoke 30.8 x 25.03 x 45.6cm / 12.13 x 9.85 x 17.95 in
Control Box (V-Mount) 28.2 x 15.4 x 9cm / 11.1 x 6.1 x 3.54in
Control Box (Gold Mount) 28.2 x 15.4 x 9cm / 11.1 x 6.1 x 3.54in
Lightning Clamp 10.35 x 8.74 x 12.5cm/ 4.07 x 3.44 x 4.92in
Rolling Case 60.7 x 40 x 37.2cm / 23.9 x 15.75 x 14.65in
WEIGHT
Lamp Head w/ Yoke 4.69kg / 10.34lbs
Control Box (V-Mount) 3.24kg / 7.14lbs
Control Box (Gold Mount) 3.24kg / 7.14lbs
Lightning Clamp 670g / 1.48lbs
Total w/ Case 16.71kg / 36.84lbs
PHOTOMETRICS
CCT Distance Light Only LS 600 Series Hyper Reflector F10 Fresnel (Flood) F10 Fresnel (Spot)
5600K 1M 22,150 lux / 2,058 fc 98,500 lux / 9,150 fc 89,200 lux / 8,289 fc 224,200 lux / 20,836 fc
3M 2,600 lux / 242 fc 8,500 lux / 790 fc 11,440 lux / 1,063 fc 29,300 lux / 2,723 fc
5M 1,020 lux / 95 fc 3,000 lux / 280 fc 4,260 lux / 395 fc 10,580 lux / 983 fc
For use with any Profoto HR (heat resistant) soft box.
£12- Per day + VAT
For use with Chimera Video Pro Plus extra small or small soft box.
£12- Per day + VAT
