The 1200X Bi features a new colour ‘Blair’ higher quality colour engine and a re-engineered mount for better fixing of light modifiers. A stand-out feature is the new CF12  pancake fresnel which is considerably smaller and more user friendly than previous versions.

Weather proof fixture. ‘light storm’


Aputure 1200x Base Kit. £180 Per day + VAT

Head Aputure 1200X

Included in Base Kit

Hyper Reflectors Narrow/Medium/Wide

Included in Base Kit. 15/30/45º Reflectors.

Light Control Unit

Included in Base Kit

Control Unit Accessories

Included in Base Kit





Aputure 1200x Optional Accessories

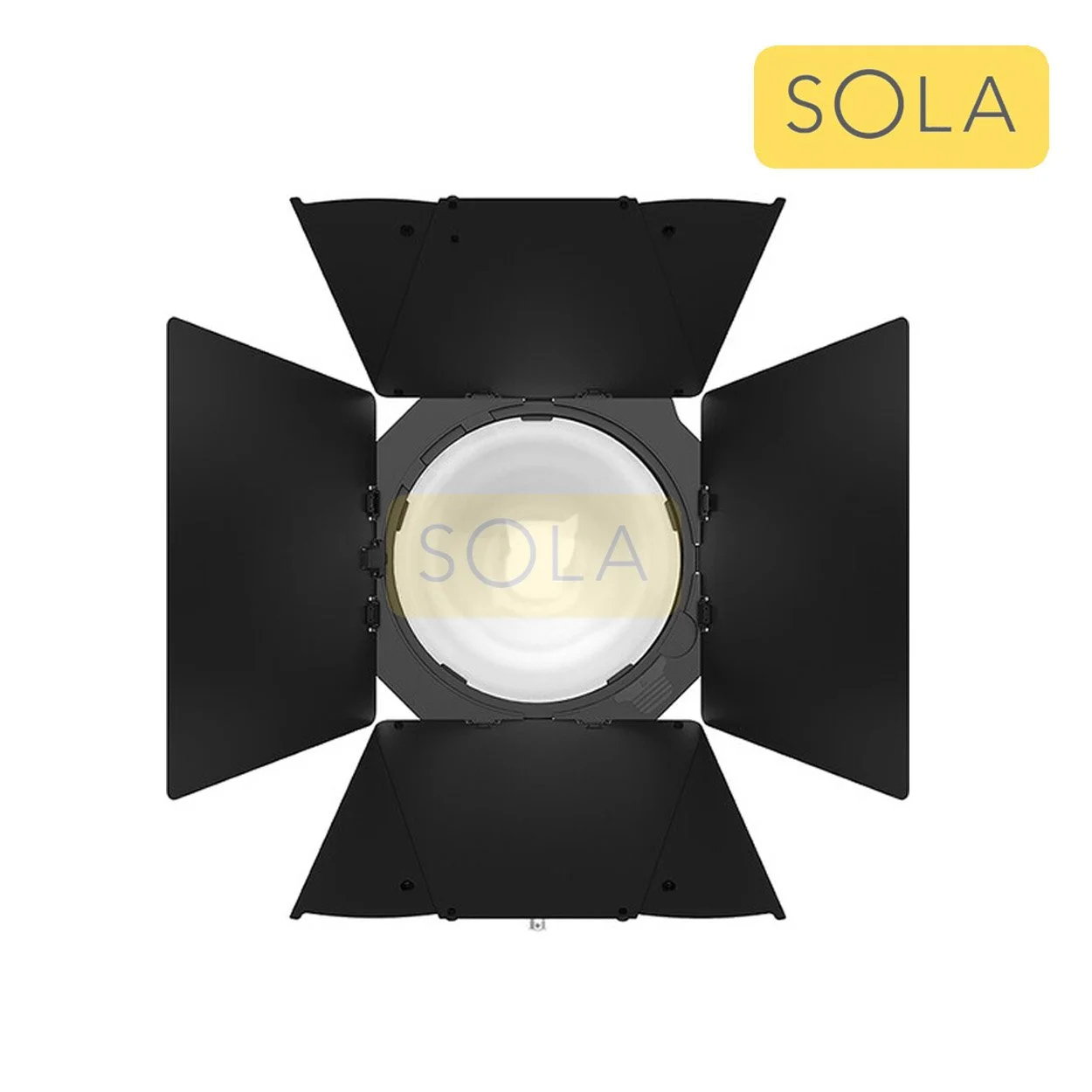

Aputure F10 Barn Doors

Barn Door set, which attach directly to Head.

Dimension: 254 x 187 x 160MM

£20 Per day + VAT

Aputure Light Dome 150

5’ Round softbox complete with-
Half Diffusion
Full Diffusion
45° Eggcrate

Dimension: Φ150cm x 80cm, Weight; 3.2kg

£30 Per day + VAT

Aputure Light Dome MKII and MKIII

3’ Round softbox complete with-
Half Diffusion
Full Diffusion
45° Eggcrate

The Mark 3 has an updated set-up mechanism but is essentially the same light-tool.

Dimension: Φ89cm x 65cm, Weight; 2.55kg

£25 Per day + VAT

Aputure Light Octadome 120

4’ Octagonal softbox complete with-
Half Diffusion
Full Diffusion
45° Eggcrate

Dimension: Φ120cm x 53cm, Weight; 1.7kg

£25 Per day + VAT


Aputure Lantern 90

3ft Chinese Lantern. Kit includes 360° fabric skirt which hangs down in 4 sections approximately 25cm below diffusion. Picture above with only one section dropped.

Dimension: Φ83.5cmcm x Depth; 18.5cm, Weight; 1.3kg

£20 Per day + VAT

Aputure Space Light

Space Light with detachable black skirt and clips. The skirt can be clipped to the side to manage spill and wraps around to 270° Can only be used vertically as shown.

Dimension: Φ45cm x Height; 72cm, Weight; 1.3kg

£15 Per day + VAT

Aputure CF12 Pancake Fresnel

The new CF12 Fresnel offers a beam range of 15º to 45º while maintaining a compact profile. It uses a dual-expanding focusing system with multiple lens elements to drastically reduce its size and weight without compromising optical performance. Its compact design is perfect for small, well-balanced setups on the STORM 1000c and STORM 1200x. The CF12 Fresnel is also compatible the LS 1200d Pro, LS 600c Pro, and LS 600c Pro II.

£40 Per day + VAT

Speed Ring for Profoto Soft Boxes

For use with any Profoto HR (heat resistant) soft box.

£12- Per day + VAT


Speed Ring for Chimera Soft Boxes

For use with Chimera Video Pro Plus extra small or small soft box.

£12- Per day + VAT

Aputure Spotlight Max

19, 36 and 50º profile lenses for the XT 26 and 1200 Aputure’s.

Accessories included in kit: 18-Leaf Iris, Shutters,Gobo Holder, Gobo Kit x3.

Single Lens - £40 Per day + VAT

Gobo Kit for Spotlight Max

Set of 3 gobos included with Spotlight Max profile lenses. ‘A’ size.

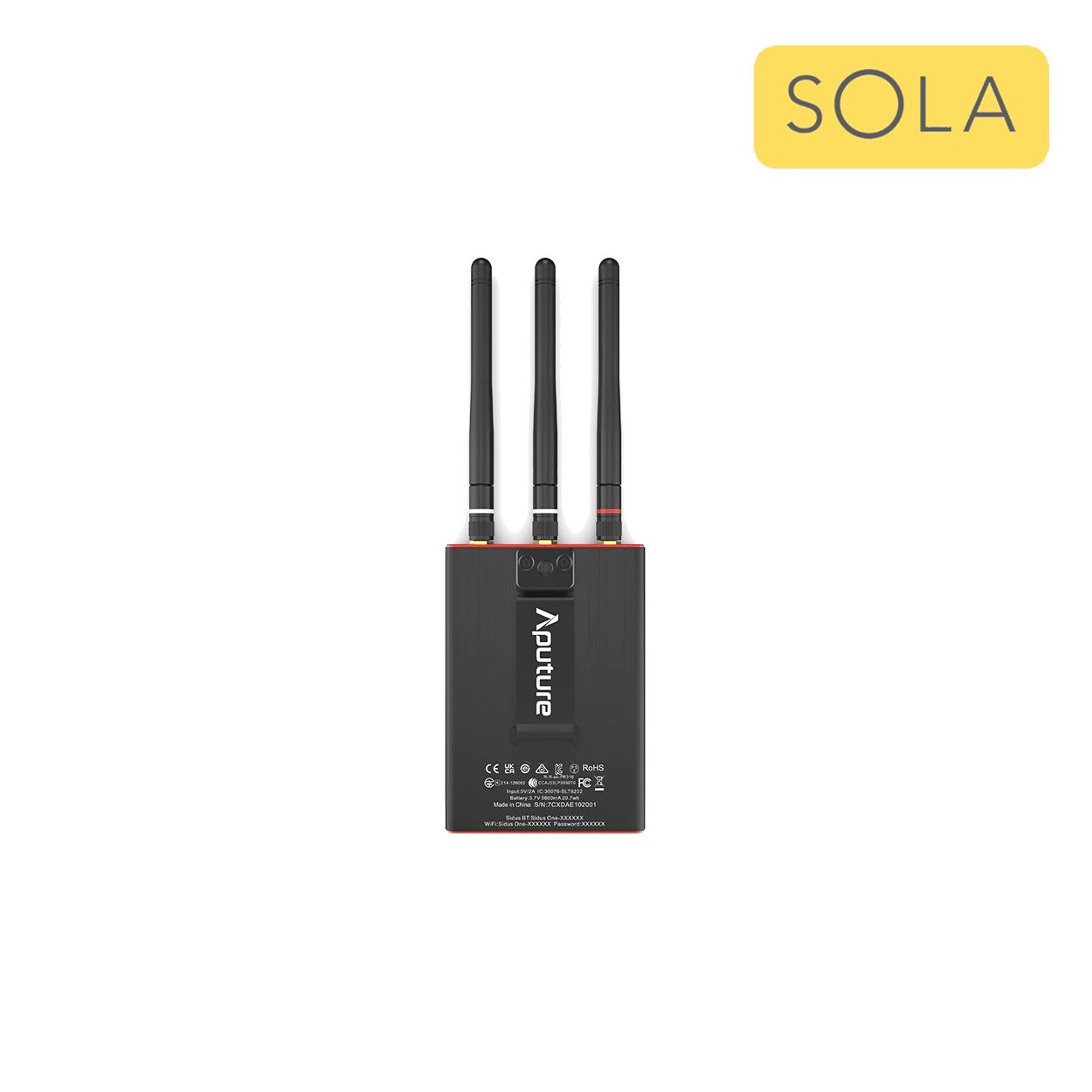

Sidus One

Single universe CRMX transceiver with built-in battery

Control any DMX-compatible or Sidus Bluetooth light with this pocket-size transceiver. Link multiple Sidus One units to control up to four DMX universes.


Instagrid Battery

A robust and efficient unit from German manufacturers Instagrid. The One Max battery will run an Aputure 1200X for approximately 60-75 minutes.

£105 Per day + VAT

Weather Warning !

If the STORM 1200x is used in a heavy rain, it is recommended to use the tilt angle range of the lamp head as shown above.


LS 1200X Specification

Lamp Colour

Colour CCT; 2500-10,000K

CRI ≥95

TLCI ≥95

SSI (D56) ≥87/

TM-30 RF (Average) 95

TM-30 RG (Average) 100

Lamp Misc

Beam Angle Raw (No Accessories) 66°

Beam Angle BM1215 Bowens Mount Hyper Reflector (Narrow) 15°

Beam Angle BM1230 Bowens Mount Hyper Reflector (Medium) 30°

Beam Angle BM1245 Bowens Mount Hyper Reflector (Wide) 45°

F10 Fresnel; 15° ~ 45°

Est. Max Flicker-Free; FPS 2,000 FPS

Cooling Method; Active Cooling

Operating Temperature; -20°C ~ 45°C / -4°F ~ 113°F

Dimming 0-100%; Linear, Exponential, Logarithmic, S-Curve

Accessory Mount; Bowens Mount

Mounting; 28mm / 1.125in (Junior Pin)



Power

Max Power Output ≤1,200W

Max Power Consumption ≤1,450W

Max Operating Current 15A Max

Connectivity


Wireless Protocol; On-board, Sidus Link & Sidus Link Pro Apps, DMX/RDM, CRMX, sACN/Art-Net

Mobile App; Android & iOS

App Name: Sidus Link

Wireless Operating Range (Bluetooth) ≤80m

Wireless Operating Range (LumenRadio) ≤100m

Firmware Upgradeable USB (FAT16/FAT32), Sidus Link

Weight

Lamp Head 9.8 kg/21.6lbs

Control Box 6.12 kg/13.5 lbs

Dimensions

Lamp Head w/o Yoke 33.46 x 23.17 x 25.08cm / 13.17 x 9.12 x 9.87 in

Lamp Head w/ Yoke 33.46 x 33.8 x 55.73cm / 13.17 x 13.31 x 21.94 in

Control Box 13.58 x 20 x 34.35cm / 5.35 x 7.87 x 13.52 in

Lightning Clamp 10.35 x 8.74 x 12.5cm/ 4.07 x 3.44 x 4.92in

Reflector Case 41 x 40 x 40cm / 16.14 x 15.75 x 15.75in

Rolling Case 67 x 48 x 48cm / 26.38 x 18.9 x 18.9in
